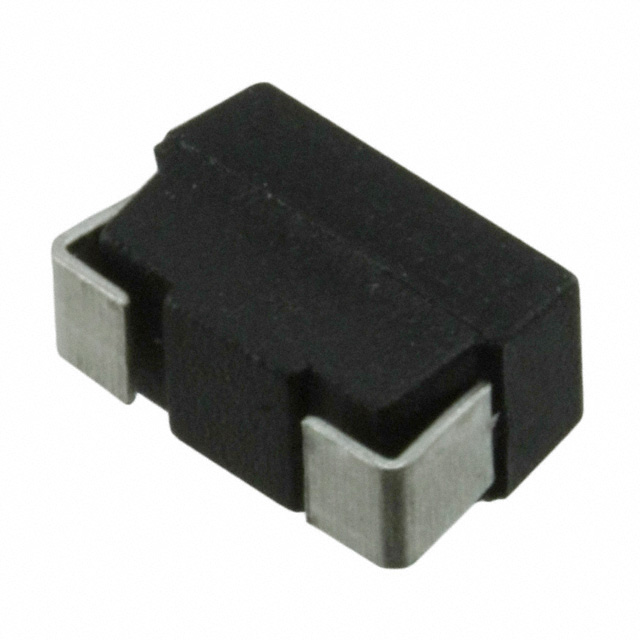

PWR2010WR500JE

Active

Bourns Inc.

SURFACE MOUNT WIREWOUND RESISTOR, PWR SERIES, 0.5 OHM, 500 MW, - 5%

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PWR2010WR500JE

Active

Bourns Inc.

SURFACE MOUNT WIREWOUND RESISTOR, PWR SERIES, 0.5 OHM, 500 MW, - 5%

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PWR2010WR500JE

Composition	Wirewound
Features	Current Sense, Pulse Withstanding
Height - Seated (Max) [Max] [z]	0.148 in
Height - Seated (Max) [Max] [z]	3.76 mm
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	2010 J-Lead
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	500 mOhms
Size / Dimension [x]	0.2 in
Size / Dimension [x]	5.08 mm
Size / Dimension [y]	2.54 mm
Size / Dimension [y]	0.1 in
Supplier Device Package	2010
Temperature Coefficient	90 ppm/°C
Tolerance	5 %

PWR2010 Series

Part	Resistance	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Power (Watts)	Package / Case	Features	Tolerance	Composition	Number of Terminations	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package
Bourns Inc. PWR2010WR500JE	500 mOhms	90 ppm/°C	155 °C	-55 °C	0.2 in	2.54 mm	5.08 mm	0.1 in	0.5 W	0.5 W	2010 J-Lead	Current Sense Pulse Withstanding	5 %	Wirewound	2	0.148 in	3.76 mm	2010
Bourns Inc. PWR2010W1800JE	180 Ohms	20 ppm/°C	155 °C	-55 °C	0.2 in	2.54 mm	5.08 mm	0.1 in	0.5 W	0.5 W	2010 J-Lead	Current Sense Pulse Withstanding	5 %	Wirewound	2	0.148 in	3.76 mm	2010
Bourns Inc. PWR2010W47R0JE	47 Ohms	20 ppm/°C	155 °C	-55 °C	0.2 in	2.54 mm	5.08 mm	0.1 in	0.5 W	0.5 W	2010 J-Lead	Current Sense Pulse Withstanding	5 %	Wirewound	2	0.148 in	3.76 mm	2010
Bourns Inc. PWR2010WR500FE	500 mOhms	90 ppm/°C	155 °C	-55 °C	0.2 in	2.54 mm	5.08 mm	0.1 in	0.5 W	0.5 W	2010 J-Lead	Current Sense Pulse Withstanding	1 %	Wirewound	2	0.148 in	3.76 mm	2010
Bourns Inc. PWR2010WR100JE	0.1 Ohms	90 ppm/°C	155 °C	-55 °C	0.2 in	2.54 mm	5.08 mm	0.1 in	0.5 W	0.5 W	2010 J-Lead	Current Sense Pulse Withstanding	5 %	Wirewound	2	0.148 in	3.76 mm	2010
Bourns Inc. PWR2010W24R0JE	24 Ohms	20 ppm/°C	155 °C	-55 °C	0.2 in	2.54 mm	5.08 mm	0.1 in	0.5 W	0.5 W	2010 J-Lead	Current Sense Pulse Withstanding	5 %	Wirewound	2	0.148 in	3.76 mm	2010
Bourns Inc. PWR2010W7R50JE	7.5 Ohms	50 ppm/°C	155 °C	-55 °C	0.2 in	2.54 mm	5.08 mm	0.1 in	0.5 W	0.5 W	2010 J-Lead	Current Sense Pulse Withstanding	5 %	Wirewound	2	0.148 in	3.76 mm	2010
Bourns Inc. PWR2010W1R00JE	1 Ohms	50 ppm/°C	155 °C	-55 °C	0.2 in	2.54 mm	5.08 mm	0.1 in	0.5 W	0.5 W	2010 J-Lead	Current Sense Pulse Withstanding	5 %	Wirewound	2	0.148 in	3.76 mm	2010
Bourns Inc. PWR2010W5R00JE	5 Ohms	50 ppm/°C	155 °C	-55 °C	0.2 in	2.54 mm	5.08 mm	0.1 in	0.5 W	0.5 W	2010 J-Lead	Current Sense Pulse Withstanding	5 %	Wirewound	2	0.148 in	3.76 mm	2010
Bourns Inc. PWR2010W4R70JE	4.7 Ohms	50 ppm/°C	155 °C	-55 °C	0.2 in	2.54 mm	5.08 mm	0.1 in	0.5 W	0.5 W	2010 J-Lead	Current Sense Pulse Withstanding	5 %	Wirewound	2	0.148 in	3.76 mm	2010

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.27
		10	$ 1.07
		25	$ 1.04
		50	$ 0.95
		100	$ 0.77
		250	$ 0.69
		500	$ 0.58
		1000	$ 0.48
	Digi-Reel®	1	$ 1.27
		10	$ 1.07
		25	$ 1.04
		50	$ 0.95
		100	$ 0.77
		250	$ 0.69
		500	$ 0.58
		1000	$ 0.48
	Tape & Reel (TR)	2500	$ 0.45
Newark	Each	2500	$ 0.51

Description

General part information

PWR2010 Series

500 mOhms ±5% 0.5W, 1/2W Chip Resistor 2010 J-Lead Current Sense, Pulse Withstanding Wirewound
