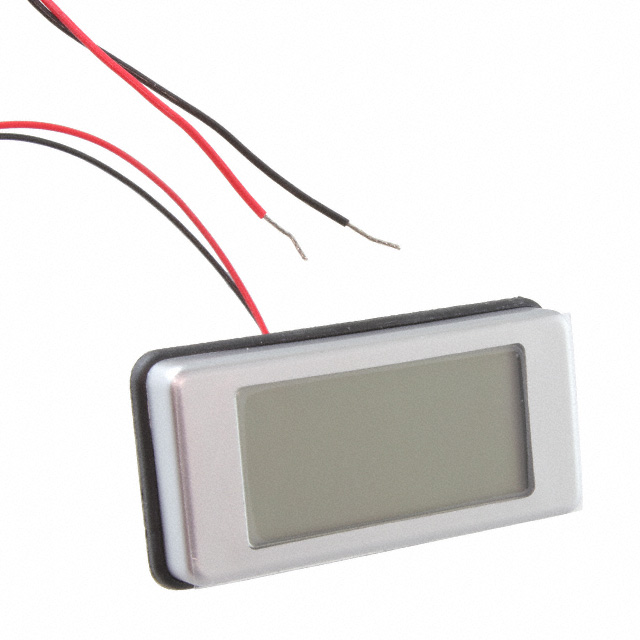

EMV 1200

Active

Lascar Electronics

2-WIRE LCD VOLTMETER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EMV 1200

Active

Lascar Electronics

2-WIRE LCD VOLTMETER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EMV 1200

Display Characters - Height [z]	0.5 in
Display Characters - Height [z]	12.7 mm
Display Type	LCD - Black Characters
Measuring Range [Max]	25 VDC
Measuring Range [Min]	4 VDC
Measuring Type	Voltage
Mounting Type	Panel Mount - Surface
Number of Characters Per Row	3.5
Panel Cutout Dimensions [diameter]	5.5 mm
Termination Style	Wire Leads
Type	Voltmeter
Voltage - Supply [Max]	50 VDC
Voltage - Supply [Min]	3 V

- Series

Part	Termination Style	Type	Number of Characters Per Row	Voltage - Supply [Max]	Voltage - Supply [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Characters - Height	Display Characters - Height	Measuring Type	Output Type	Display Characters - Height [z]	Display Characters - Height [z]	Measuring Range [Min]	Measuring Range [Max]	Display Type	Mounting Type	Panel Cutout Dimensions [diameter]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Display Characters - Height [y]	Display Characters - Height [y]
Lascar Electronics DPM 342	Screw Terminal	Ammeter	3.5	6 V	5 V	38 mm	18 mm	0.433 in	11 mm	Current
Lascar Electronics SP 400	PC Pin	Voltmeter	3.5	7.5 V	3 V	34 mm	21.3 mm			Voltage	Reference	9.75 mm	0.384 in	-200 mV	0.2 VDC
Lascar Electronics V 1	PC Pin	Voltmeter	3.5	12 V	7 V	31 mm	15 mm			Voltage	Reference	6.3 mm	0.25 in	-200 mV	0.2 VDC	LCD - Black Characters
Lascar Electronics SP 300	PC Pin	Voltmeter	3.5	5.25 V	4.75 V	34 mm	21.3 mm	0.37 in	9.4 mm	Voltage				-200 mV	0.2 VDC	LCD - Red Characters Backlight
Lascar Electronics DPM 125	PC Pin	Voltmeter	3.5	14 V	7.5 V	45 mm	22.2 mm			Voltage	Reference	12.7 mm	0.5 in	-200 mV	0.2 VDC	LCD - Black Characters	Panel Mount - Bezel Window
Lascar Electronics EMT 1900	Wire Leads	Temperature Meter	3.5	28 V	4 V					Thermister		12.7 mm	0.5 in	50 °C	220 °C	LCD - Black Characters	Panel Mount - Surface	5.5 mm	-10 °C	50 °C
Lascar Electronics SP 200	PC Pin	Voltmeter	3.5	5.25 V	3.5 V	34 mm	21.3 mm			Voltage		9.75 mm	0.384 in	-200 mV	0.2 VDC
Lascar Electronics DPM 340	PC Pin	Voltmeter	3.5	5.25 V	4.75 V	38 mm	18 mm			Voltage				-200 mV	0.2 VDC	LED - Red Characters					0.315 in	8 mm
Lascar Electronics DPM 970	Screw Terminal	Voltmeter	3.5	14 V	7.5 V	72 mm	40 mm			Voltage				0 VAC	500 VAC						0.748 in	19 mm
Lascar Electronics EMV 1200	Wire Leads	Voltmeter	3.5	50 VDC	3 V					Voltage		12.7 mm	0.5 in	4 VDC	25 VDC	LCD - Black Characters	Panel Mount - Surface	5.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 43.75
		10	$ 40.99

Description

General part information

- Series

Voltmeter LCD - Black Characters Display Panel Mount - Surface
