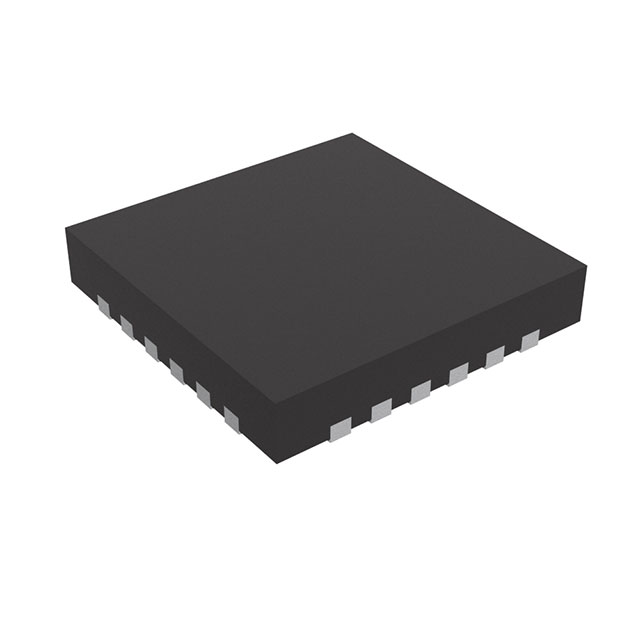

R1290K102A-E2
ActiveNisshinbo Micro Devices Inc
TRIPLE OUTPUT DCDC CONVERTER FOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R1290K102A-E2
ActiveNisshinbo Micro Devices Inc
TRIPLE OUTPUT DCDC CONVERTER FOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R1290K102A-E2 |
|---|---|
| Applications | TFT LCD, Converter |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 95 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | QFN0404-24 |
| Voltage - Input [Max] | 5.5 V |
| Voltage - Input [Min] | 2.5 V |
| Voltage - Output [Max] | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.83 | |
| 10 | $ 2.54 | |||
| 25 | $ 2.40 | |||
| 100 | $ 2.04 | |||
| 250 | $ 1.92 | |||
| 500 | $ 1.68 | |||
| Digi-Reel® | 1 | $ 2.83 | ||
| 10 | $ 2.54 | |||
| 25 | $ 2.40 | |||
| 100 | $ 2.04 | |||
| 250 | $ 1.92 | |||
| 500 | $ 1.68 | |||
| Tape & Reel (TR) | 1000 | $ 1.19 | ||
Description
General part information
R1290 Series
R1290K Converter, TFT LCD Voltage Regulator IC 3 Output QFN0404-24
