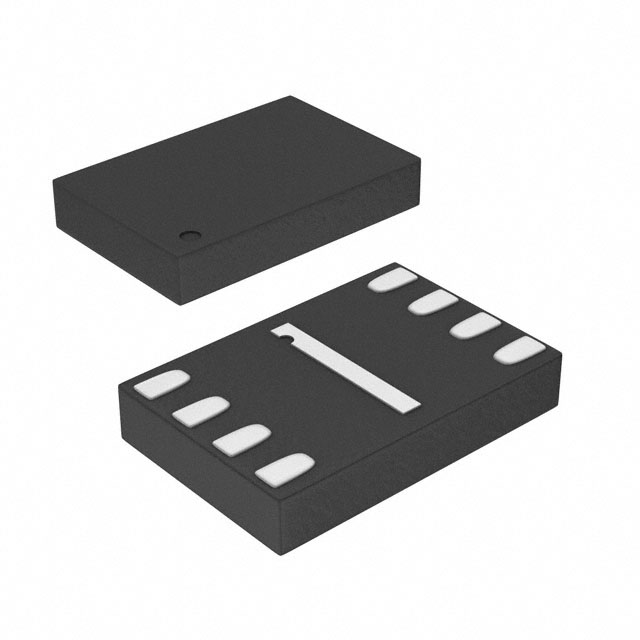

M24C16-RMB6TG

Obsolete

STMicroelectronics

IC EEPROM 16KBIT I2C 8UFDFPN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M24C16-RMB6TG

Obsolete

STMicroelectronics

IC EEPROM 16KBIT I2C 8UFDFPN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24C16-RMB6TG

Access Time	900 ns
Clock Frequency	400 kHz
Memory Format	EEPROM
Memory Interface	I2C
Memory Organization	2K x 8
Memory Size	16 Kbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-UFDFN Exposed Pad
Supplier Device Package	8-UFDFPN (2x3)
Technology	EEPROM
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	1.8 V
Write Cycle Time - Word, Page	5 ms

M24C16-DFCU Series

16-Kbit serial I2C bus EEPROM

Part	Supplier Device Package	Memory Type	Technology	Memory Organization	Package / Case	Memory Interface	Operating Temperature [Min]	Operating Temperature [Max]	Access Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Mounting Type	Memory Format	Write Cycle Time - Word, Page	Clock Frequency	Package / Case [custom]	Package / Case [custom]	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case
STMicroelectronics M24C16-FMB5TG	8-UFDFPN (2x3)	Non-Volatile	EEPROM	2K x 8	8-UFDFN Exposed Pad	I2C	-20 °C	85 C	900 ns	5.5 V	1.7 V	16 Kbit	Surface Mount	EEPROM	5 ms	400 kHz
STMicroelectronics M24C16-WDW6TP	8-TSSOP	Non-Volatile	EEPROM	2K x 8	8-TSSOP	I2C	-40 °C	85 °C	900 ns	5.5 V	2.5 V	16 Kbit	Surface Mount	EEPROM	5 ms	400 kHz	0.173 "	4.4 mm
STMicroelectronics M24C16-WMN6T	8-SOIC	Non-Volatile	EEPROM	2K x 8	8-SOIC	I2C	-40 °C	85 °C	900 ns	5.5 V	2.5 V	16 Kbit	Surface Mount	EEPROM	5 ms	400 kHz			3.9 mm	0.154 in
STMicroelectronics M24C16-RDW6TP	8-TSSOP	Non-Volatile	EEPROM	2K x 8	8-TSSOP	I2C	-40 °C	85 °C	900 ns	5.5 V	1.8 V	16 Kbit	Surface Mount	EEPROM	5 ms	400 kHz	0.173 "	4.4 mm
STMicroelectronics M24C16-WMN6	8-SOIC	Non-Volatile	EEPROM	2K x 8	8-SOIC	I2C	-40 °C	85 °C	900 ns	5.5 V	2.5 V	16 Kbit	Surface Mount	EEPROM	5 ms	400 kHz			3.9 mm	0.154 in
STMicroelectronics M24C16-FMC5TG	8-UFDFPN (2x3)	Non-Volatile	EEPROM	2K x 8	8-UFDFN Exposed Pad	I2C	-20 °C	85 C	900 ns	5.5 V	1.7 V	16 Kbit	Surface Mount	EEPROM	5 ms	400 kHz
STMicroelectronics M24C16-RMB6TG	8-UFDFPN (2x3)	Non-Volatile	EEPROM	2K x 8	8-UFDFN Exposed Pad	I2C	-40 °C	85 °C	900 ns	5.5 V	1.8 V	16 Kbit	Surface Mount	EEPROM	5 ms	400 kHz
STMicroelectronics M24C16-RBN6P	8-PDIP	Non-Volatile	EEPROM	2K x 8	8-DIP	I2C	-40 °C	85 °C	900 ns	5.5 V	1.8 V	16 Kbit	Through Hole	EEPROM	5 ms	400 kHz					0.3 in	7.62 mm
STMicroelectronics M24C16-DFCU6TP/K	4-WLCSP	Non-Volatile	EEPROM	2K x 8	4-XFBGA WLCSP	I2C	-40 °C	85 °C	450 ns	5.5 V	1.7 V	16 Kbit	Surface Mount	EEPROM	5 ms
STMicroelectronics M24C16-RMN6P	8-SOIC	Non-Volatile	EEPROM	2K x 8	8-SOIC	I2C	-40 °C	85 °C	900 ns	5.5 V	1.8 V	16 Kbit	Surface Mount	EEPROM	5 ms	400 kHz			3.9 mm	0.154 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M24C16-DFCU Series

The M24C16-DFCU is a 16-Kbit I2C-compatible EEPROM assembled in a four balls ultra thin chip scale package (WLCSP).

The device is accessed by a simple serial I2C compatible interface running up to 1 MHz.

The M24C16-DFCU memory array is based on advanced true EEPROM technology (electrically erasable programmable memory), organized as 128 pages of 16 bytes, with a data integrity improved with an embedded Error Correction Code logic.
