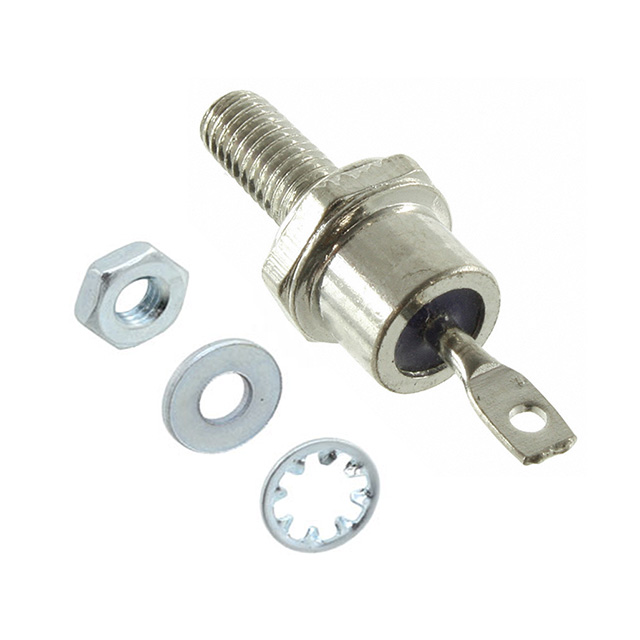

1N1200A

Active

GeneSiC Semiconductor

DIODE GEN PURP 100V 12A DO4

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE GEN PURP 100V 12A DO4

Technical Specifications

Parameters and characteristics for this part

Specification	1N1200A

Current - Average Rectified (Io)	12 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Stud, DO-203AA, DO-4
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-4
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.1 V

DIODE GEN PURP 100V 12A DO4

Part	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Mounting Type	Speed	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Technology
GeneSiC Semiconductor 1N1200A	12 A	1.1 V	Chassis, Stud Mount	Standard Recovery >500ns	200 mA	200 C	-65 C	DO-203AA, DO-4, Stud	100 V	DO-4	10 µA	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 12A Chassis, Stud Mount DO-4
