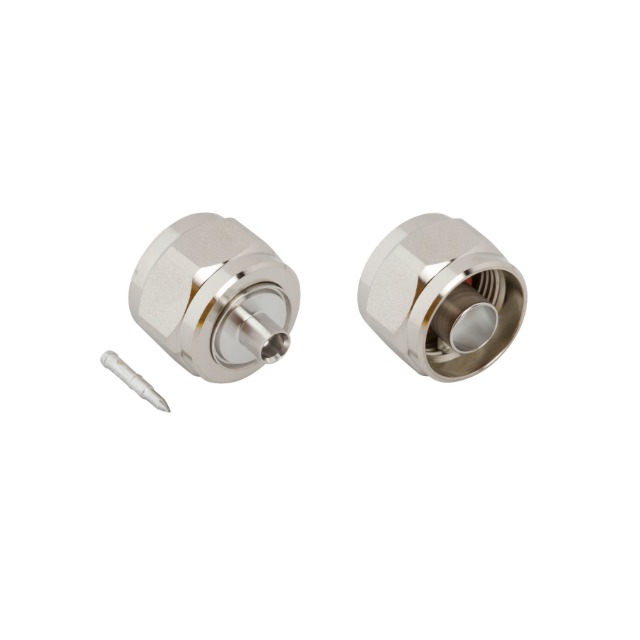

172133-16

Active

Amphenol RF

CONN N PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	172133-16

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Low PIM
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	Weatherproof
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	1500 V

Part	Mounting Type	Frequency - Max [Max]	Dielectric Material	Ingress Protection	Mating Cycles	Contact Termination	Number of Ports	Body Material	Body Finish	Voltage Rating	Impedance	Housing Color	Connector Type	Center Contact Material	Center Contact Plating	Insertion Loss	Shield Termination	Connector Style	Features	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol RF 172133-16	Free Hanging (In-Line)	6000 MHz	Polytetrafluoroethylene (PTFE)	Weatherproof	500	Solder	1	Brass	White Bronze	1500 V	50 Ohms	Silver	Male Pin Plug	Brass	Silver	0.05 dB	Solder	N Type	Low PIM	155 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 23.62

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
