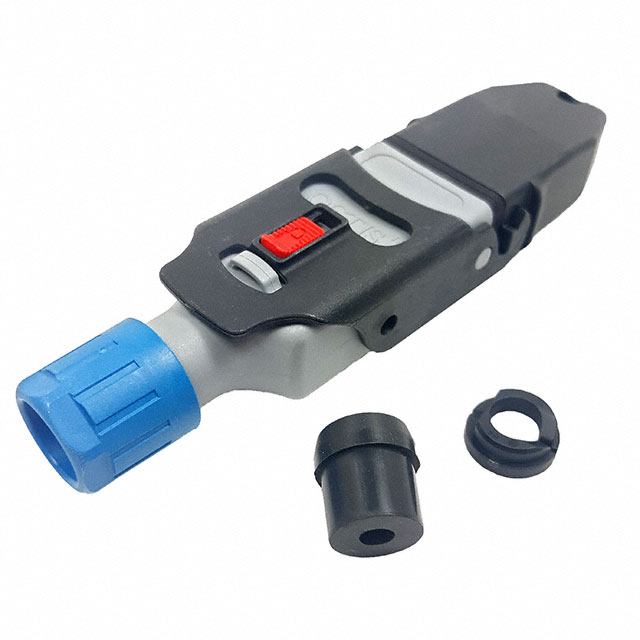

10145289-101LF

Active

Amphenol ICC (FCI)

CONN FBR OPTIC PLUG HSG FOR MPO

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FBR OPTIC PLUG HSG FOR MPO

Technical Specifications

Parameters and characteristics for this part

Specification	10145289-101LF

Cable Diameter [Max] [diameter]	0.22 in
Cable Diameter [Max] [diameter]	5.6 mm
Cable Diameter [Min] [diameter]	0.18 in
Cable Diameter [Min] [diameter]	4.5 mm
Connector Type	Plug
For Use With/Related Products	MPO Plugs
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Simplex/Duplex	Simplex

Part	Housing Material	Connector Type	Simplex/Duplex	Cable Diameter [Min] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	For Use With/Related Products	Material Flammability Rating	Mounting Type	Ingress Protection
Amphenol ICC (FCI) 10145289-101LF	Polybutylene Terephthalate (PBT) Glass Filled	Plug	Simplex	0.18 in	4.5 mm	0.22 in	5.6 mm	85 °C	-40 °C	MPO Plugs	UL94 V-0	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fiber Optic Connector Housing Plug For MPO Plugs
