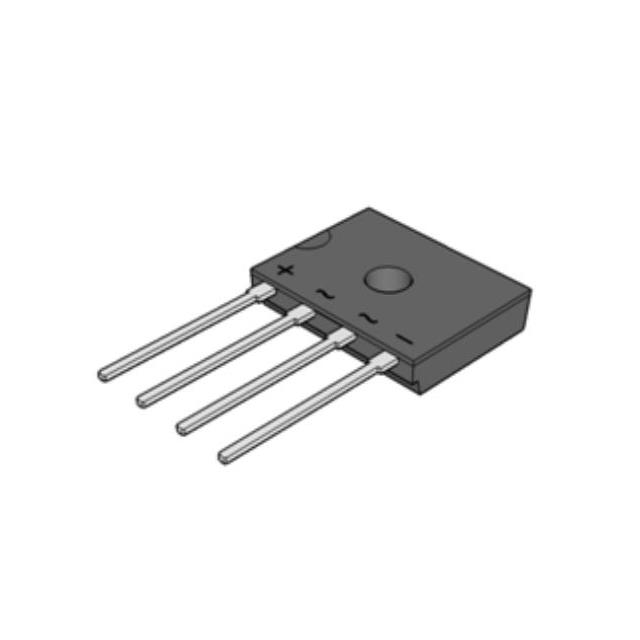

UG3KB80G

Active

SMC Diode Solutions

BRIDGE RECT 1PHASE 800V 3A D3K

Search across all available documentation for this part.

Active

SMC Diode Solutions

BRIDGE RECT 1PHASE 800V 3A D3K

Technical Specifications

Parameters and characteristics for this part

Specification	UG3KB80G

Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-ESIP
Supplier Device Package	D3K
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	800 V

BRIDGE RECT 1PHASE 800V 3A D3K

Part	Diode Type	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Mounting Type	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]	Technology	Supplier Device Package	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]
SMC Diode Solutions UG3KB80G	Single Phase	1.1 V	5 µA	Through Hole	3 A	800 V	Standard	D3K	4-ESIP	-55 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1400	$ 0.17

General part information

Bridge Rectifier Single Phase Standard 800 V Through Hole D3K
