Q-0F019000H012i

Active

Amphenol Custom Cable

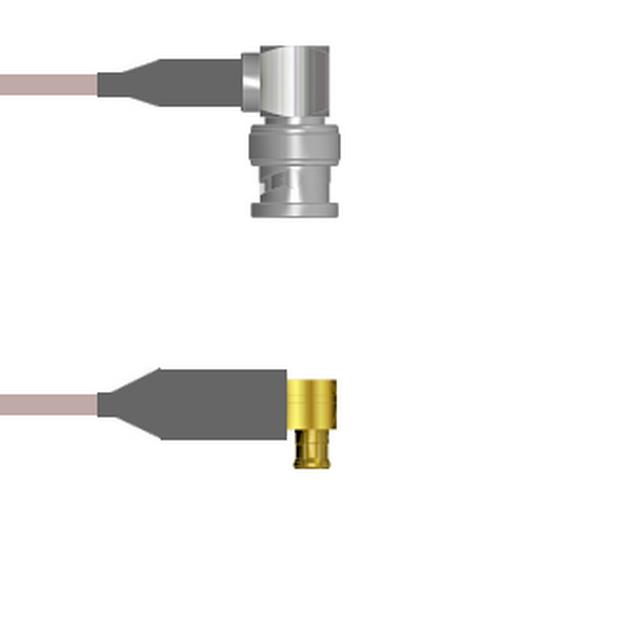

CBL ASSY BNC-MCX PLUG-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0F019000H012i

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX PLUG-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0F019000H012i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-0F0190 Series

Part	Frequency - Max [Max]	Features	2nd Contact Gender	Overall Impedance	Color	Style	Length	Length	Length	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Connector	1st Contact Gender	1st Connector	Cable Type
Amphenol Custom Cable Q-0F019000H108i	4 GHz	Shielded	Male	50 Ohms	Copper	BNC to MCX	2.7 m	9 ft	108 in	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX Plug Right Angle	Male	BNC Plug Right Angle	RG-142
Amphenol Custom Cable Q-0F019000H002M	4 GHz	Shielded	Male	50 Ohms	Copper	BNC to MCX	2 m	6.6 ft	78.7 in	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX Plug Right Angle	Male	BNC Plug Right Angle	RG-142
Amphenol Custom Cable Q-0F019000H1.5M	4 GHz	Shielded	Male	50 Ohms	Copper	BNC to MCX	1.5 m	4.9 ft	59.1 in	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX Plug Right Angle	Male	BNC Plug Right Angle	RG-142
Amphenol Custom Cable Q-0F019000H001M	4 GHz	Shielded	Male	50 Ohms	Copper	BNC to MCX	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX Plug Right Angle	Male	BNC Plug Right Angle	RG-142
Amphenol Custom Cable Q-0F019000H003M	4 GHz	Shielded	Male	50 Ohms	Copper	BNC to MCX	3 m	9.8 '	118.1 in	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX Plug Right Angle	Male	BNC Plug Right Angle	RG-142
Amphenol Custom Cable Q-0F019000H072i	4 GHz	Shielded	Male	50 Ohms	Copper	BNC to MCX	1.8 m	6 ft	72 in	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX Plug Right Angle	Male	BNC Plug Right Angle	RG-142
Amphenol Custom Cable Q-0F019000H036i	4 GHz	Shielded	Male	50 Ohms	Copper	BNC to MCX	91.44 cm		36 in	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX Plug Right Angle	Male	BNC Plug Right Angle	RG-142
Amphenol Custom Cable Q-0F019000H012i	4 GHz	Shielded	Male	50 Ohms	Copper	BNC to MCX	304.8 mm		12 "	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX Plug Right Angle	Male	BNC Plug Right Angle	RG-142
Amphenol Custom Cable Q-0F019000H048i	4 GHz	Shielded	Male	50 Ohms	Copper	BNC to MCX	1200 mm	4 ft	48 in	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX Plug Right Angle	Male	BNC Plug Right Angle	RG-142
Amphenol Custom Cable Q-0F019000H2.5M	4 GHz	Shielded	Male	50 Ohms	Copper	BNC to MCX	2.5 m	8.2 '	98.4 in	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX Plug Right Angle	Male	BNC Plug Right Angle	RG-142

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 118.29
		25	$ 116.01
		50	$ 113.73
		100	$ 111.45
		250	$ 109.17

Description

General part information

Q-0F0190 Series

Cable Assembly Coaxial BNC to MCX RG-142 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
