IDMS-14-S-03.00-ST4

Active

Samtec Inc.

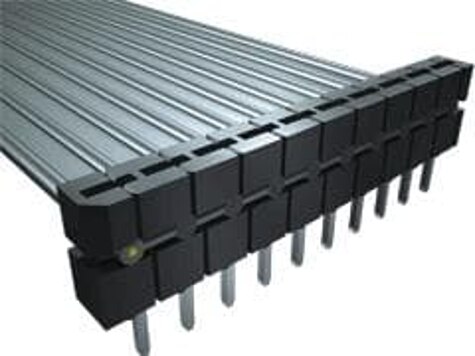

RIBBON CABLES / IDC CABLES SLIM BODY SINGLE-ROW IDC MALE ASSEMBLIES, 0.100" PITCH

Search across all available documentation for this part.

Active

Samtec Inc.

RIBBON CABLES / IDC CABLES SLIM BODY SINGLE-ROW IDC MALE ASSEMBLIES, 0.100" PITCH

Technical Specifications

Parameters and characteristics for this part

Ribbon Cables / IDC Cables Slim Body Single-Row IDC Male Assemblies, 0.100" Pitch

Part	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish	Shielding	Number of Rows	Number of Positions	Connector Type	Pitch - Cable	Pitch - Cable	Color	Number of Positions
Samtec Inc. IDMS-14-T-03.00-T	0.1 in	2.54 mm	IDC	Tin	Unshielded	1	14	Socket to Plug	0.1 in	2.54 mm	Multiple Ribbon
Samtec Inc. IDMS-03-S-02.00-ST8	0.1 in	2.54 mm	IDC	Gold	Unshielded	1		Plug to Cable	0.1 in	2.54 mm	Multiple Ribbon
Samtec Inc. IDMS-16-D-06.50-T	0.1 in	2.54 mm	IDC	Gold	Unshielded	1		Plug to Plug	0.1 in	2.54 mm	Multiple Ribbon	16
Samtec Inc. IDMS-14-S-03.00-ST4	0.1 in	2.54 mm	IDC	Gold	Unshielded	1	14	Plug to Cable	0.1 in	2.54 mm	Multiple Ribbon
Samtec Inc. IDMS-04-T-02.00-G	0.1 in	2.54 mm	IDC	Gold	Unshielded	1	4	Socket to Plug	0.1 in	2.54 mm
Samtec Inc. IDMS-15-T-33.00-T-P06	0.1 in	2.54 mm	IDC	Tin	Unshielded	1	15	Socket to Plug	0.1 in	2.54 mm	Multiple Ribbon
Samtec Inc. IDMS-20-S-04.00	0.1 in	2.54 mm	IDC	Gold	Unshielded	1	20	Plug to Cable	0.1 in	2.54 mm	Multiple Ribbon
Samtec Inc. IDMS-06-D-07.00	0.1 in	2.54 mm	IDC	Gold	Unshielded	1	6	Plug to Plug	0.1 in	2.54 mm	Multiple Ribbon
Samtec Inc. IDMS-14-T-06.50-C-G	0.1 in	2.54 mm	IDC	Gold Tin	Unshielded	1	14	Socket to Plug	0.1 in	2.54 mm
Samtec Inc. IDMS-20-T-04.10-C	0.1 in	2.54 mm	IDC	Gold Tin	Unshielded	1	20	Socket to Plug	0.1 in	2.54 mm	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ribbon Cables / IDC Cables Slim Body Single-Row IDC Male Assemblies, 0.100" Pitch

Technical documentation and resources
