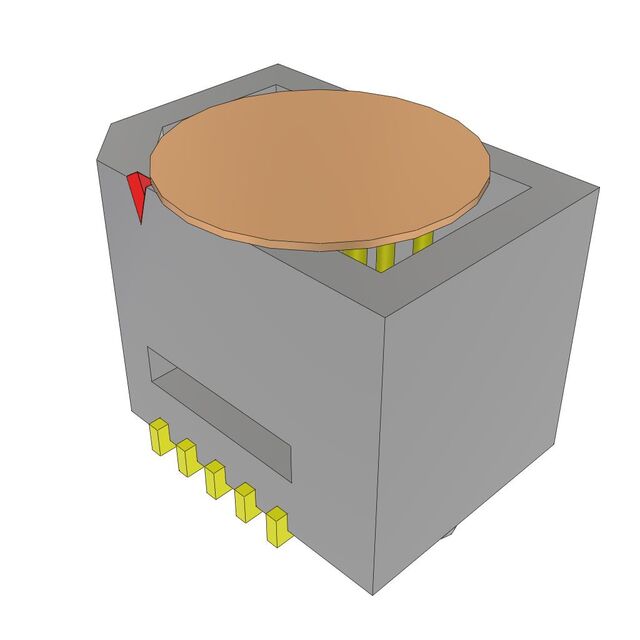

TEMS-105-02-03.0-H-D-A-K-TR
ActiveSamtec Inc.
0.80 MM TIGER EYE MICRO TERMINAL
Deep-Dive with AI
Search across all available documentation for this part.
TEMS-105-02-03.0-H-D-A-K-TR
ActiveSamtec Inc.
0.80 MM TIGER EYE MICRO TERMINAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TEMS-105-02-03.0-H-D-A-K-TR |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 3 µin |
| Contact Finish Thickness - Post | 0.076 µm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.9 A |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Board Guide |
| Insulation Color | Black |
| Insulation Height | 5.38 mm |
| Insulation Height | 0.212 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.031 in |
| Pitch - Mating | 0.8 mm |
| Row Spacing - Mating [x] | 1.6 mm |
| Row Spacing - Mating [x] | 0.063 in |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Voltage Rating | 235 VAC, 330 VDC |
TEMS-105 Series
Board to Board & Mezzanine Connectors 0.80 mm Tiger Eye Micro Terminal Strip, Slim
| Part | Mated Stacking Heights | Features | Shrouding | Contact Shape | Number of Positions | Insulation Material | Contact Type | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Number of Rows | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Fastening Type | Insulation Color | Mounting Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Finish - Mating | Current Rating (Amps) | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 7 mm | Board Guide Pick and Place | Shrouded - 4 Wall | Circular | 10 | Liquid Crystal Polymer (LCP) | Male Pin | 6.38 mm | 0.251 in | -55 °C | 125 °C | 30 Áin | 0.76 Ám | Header | 2 | Solder | 1.6 mm | 0.063 in | Push-Pull | Black | Surface Mount | 0.031 in | 0.8 mm | All | Gold | 2.9 A | 235 VAC 330 VDC | 3 µin | 0.076 µm | Phosphor Bronze | Gold |
Samtec Inc. | 6 mm | Pick and Place | Shrouded - 4 Wall | Circular | 10 | Liquid Crystal Polymer (LCP) | Male Pin | 5.38 mm | 0.212 in | -55 °C | 125 °C | 30 Áin | 0.76 Ám | Header | 2 | Solder | 1.6 mm | 0.063 in | Push-Pull | Black | Surface Mount | 0.031 in | 0.8 mm | All | Gold | 2.6 A | 235 VAC 330 VDC | 3 µin | 0.076 µm | Phosphor Bronze | Gold |
Samtec Inc. | 6 mm | Board Guide Pick and Place | Shrouded - 4 Wall | Circular | 10 | Liquid Crystal Polymer (LCP) | Male Pin | 5.38 mm | 0.212 in | -55 °C | 125 °C | 30 Áin | 0.76 Ám | Header | 2 | Solder | 1.6 mm | 0.063 in | Push-Pull | Black | Surface Mount | 0.031 in | 0.8 mm | All | Gold | 2.9 A | 235 VAC 330 VDC | 3 µin | 0.076 µm | Phosphor Bronze | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 2.99 | |
Description
General part information
TEMS-105 Series
Board to Board & Mezzanine Connectors 0.80 mm Tiger Eye Micro Terminal Strip, Slim
