TC356TA64F300SABKXUMA2

Active

Infineon Technologies

THE SAK-TC356TA-64F300S AB BELONGS TO THE TC35XTA FAMILY . IN TERMS OF PERFORMANCE, THE RADAR APPLICATION HIGH-RUNNER TC35XTA OFFERS 3 CORES AT 300 MHZ, UP TO 3.6 MBYTES EMBEDDED RAM, AND CONSUMPTION BELOW 2 W.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TC356TA64F300SABKXUMA2

Active

Infineon Technologies

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TC356TA64F300SABKXUMA2

Connectivity	Ethernet, ASC, QSPI, LINbus, SENT, I2C, CANbus, MSC, FlexRay, PSI5, HSSL
Core Size [custom]	32-Bit
Core Size [custom]	5-Core
Data Converters	A/D 16x12b SAR, Sigma-Delta
EEPROM Size	128 K
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

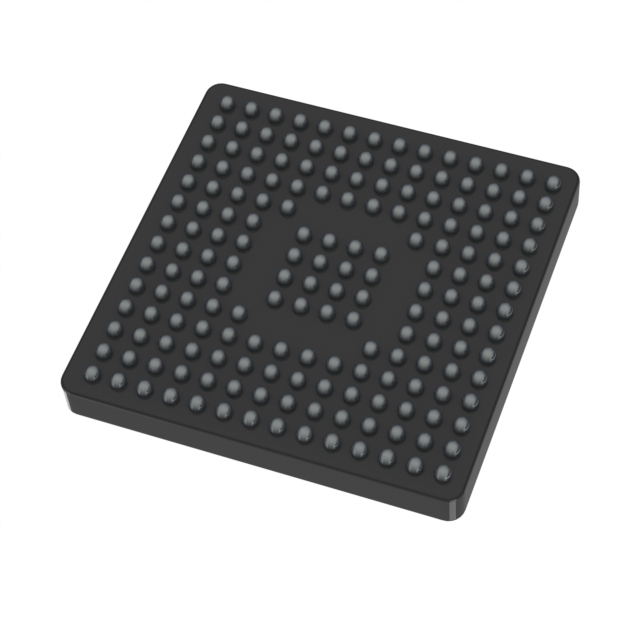

Package / Case	180-LFBGA
Peripherals	LVDS, WDT, DMA, PWM
Program Memory Size	4 MB
Program Memory Type	FLASH
RAM Size	1.44 M
Speed	300 MHz
Supplier Device Package	PG-LFBGA-180-1
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.97 V

TC356TA64 Series

Part	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Data Converters	RAM Size	Peripherals	Mounting Type	Program Memory Size	Connectivity	EEPROM Size	Speed	Supplier Device Package	Package / Case	Core Size [custom]	Core Size [custom]	Program Memory Type	Operating Temperature [Min]	Operating Temperature [Max]	Oscillator Type	Core Size	Voltage - Supply (Vcc/Vdd)
Infineon Technologies TC356TA64F300SABKXUMA2	5.5 V	2.97 V	A/D 16x12b SAR Sigma-Delta	1.44 M	DMA LVDS PWM WDT	Surface Mount	4 MB	ASC CANbus Ethernet FlexRay HSSL I2C LINbus MSC PSI5 QSPI SENT	128 K	300 MHz	PG-LFBGA-180-1	180-LFBGA	32-Bit	5-Core	FLASH	-40 °C	125 °C	Internal
Infineon Technologies TC356TA64F300SABKXUMA1				3.578 K	DMA I2S LVDS PWM WDT	Surface Mount	4 MB	ASC CANbus Ethernet FlexRay I2C LINbus QSPI SENT		300 MHz	PG-LFBGA-180-1	180-LFBGA			FLASH	-40 °C	125 °C	Internal	32-Bit Tri-Core	3.3 V 5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1500	$ 60.16

Description

General part information

TC356TA64 Series

Infineon releases its second generation AURIX™ TC3xx microcontroller in embedded Flash 40 nm Technology. It comes with an increase in performance, memory sizes, connectivity and scalability to address the new automotive trends and challenges.The SAK-TC356TA-64F300S ABbelongs to the TC35xTA family . In terms of performance, the radar application high-runner TC35xTA offers 3 cores at 300 MHz, up to 3.6 MBytes embedded RAM, and consumption below 2 W. Its mirrored embedded flash banks (2x 2 MB) support A/B swap capabilities.
