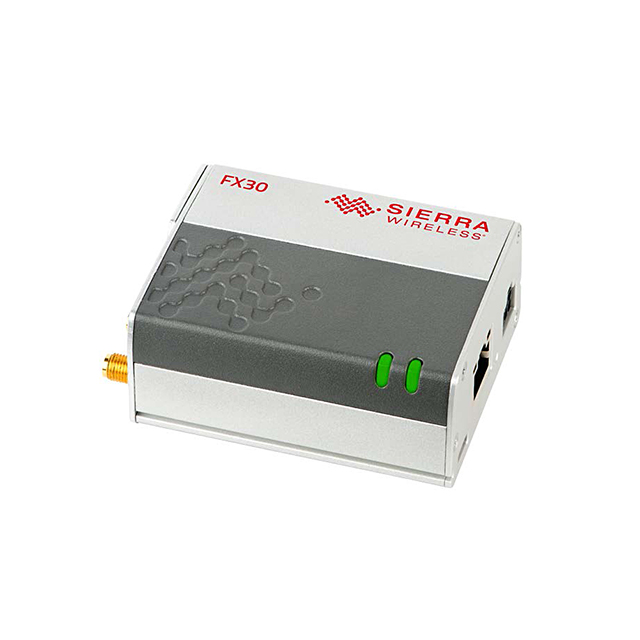

FX30_1103214

Unknown

Sierra Wireless

GATEWAY EDGE GPRS GSM HSPA+

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FX30_1103214

Unknown

Sierra Wireless

GATEWAY EDGE GPRS GSM HSPA+

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FX30 Series

Cellular, EDGE, GPRS, GSM, HSPA+ Gateway Analog, Digital, Ethernet, RJ-45, USB

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FX30_1103214	FX30 Series

Accessory Type	-	AC Adapter, Mounting Bracket, DC Power Cable
Applications	General Purpose	General Purpose
Data Rate (Max)	-	70 Mbps
Data Rate (Max)	-	110 Mbps
Features	Legato, Linux, Programmable	Legato, Linux, Programmable
For Use With/Related Products	-	FX30
Frequency	1900 MHz, 1800 MHz, 900 MHz, 850 MHz	850 - 1900 MHz
Function	Gateway	Gateway
Interface	RJ-45, Digital, Analog, USB, Ethernet	RJ-45, Digital, Analog, USB, Ethernet
Modulation or Protocol	Cellular, GPRS, GSM, HSPA+, EDGE	Cellular, GPRS, GSM, HSPA+, EDGE, LTE
Network Technology	-	IOT
Operating Temperature	-	-30 ░C
Operating Temperature	-	75 ░C
Size / Dimension	-	60 mm
Size / Dimension	-	82 mm
Size / Dimension	-	32 mm
Voltage - Supply [Max]	32 VDC	32 VDC
Voltage - Supply [Min]	4.75 V	4.75 V

FX30 Series

GATEWAY EDGE GPRS GSM HSPA+

Part	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface	Frequency	Features	Function	Modulation or Protocol	Data Rate (Max)	For Use With/Related Products	Accessory Type	Network Technology	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Data Rate (Max) [Max]
Sierra Wireless FX30_1103214	General Purpose	4.75 V	32 VDC	Analog, Digital, Ethernet, RJ-45, USB	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Legato, Linux, Programmable	Gateway	Cellular, EDGE, GPRS, GSM, HSPA+
Sierra Wireless 1104534	General Purpose	4.75 V	32 VDC	Analog, Digital, Ethernet, RJ-45, USB	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Legato, Linux, Programmable	Gateway	Cellular, EDGE, GPRS, GSM, LTE
Sierra Wireless FX30_1104533	General Purpose	4.75 V	32 VDC	Analog, Digital, Ethernet, RJ-45, USB	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Legato, Linux, Programmable	Gateway	Cellular, EDGE, GPRS, GSM, HSPA+	70 Mbps
Sierra Wireless FX30 ACCESSORY_6001090										FX30	AC Adapter
Sierra Wireless FX30 ACCESSORY_6001157										FX30
Sierra Wireless FX30 ACCESSORY_6001158												IOT	-30 ░C	75 ░C	60 mm	82 mm	32 mm
Sierra Wireless FX30 ACCESSORY_6001156										FX30	Mounting Bracket
Sierra Wireless FX30-LTEM1_1104534	General Purpose	4.75 V	32 VDC	Analog, Digital, Ethernet, RJ-45, USB	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Legato, Linux, Programmable	Gateway	Cellular, EDGE, GPRS, GSM, LTE
Sierra Wireless FX30ETH-LTEM1_1104086	General Purpose	4.75 V	32 VDC	Analog, Digital, Ethernet, RJ-45, USB	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Legato, Linux, Programmable	Gateway	Cellular, EDGE, GPRS, GSM, LTE										110 Mbps
Sierra Wireless FX30 ACCESSORY_6001155										FX30	DC Power Cable
