1064 SL001

Active

ALPHA WIRE

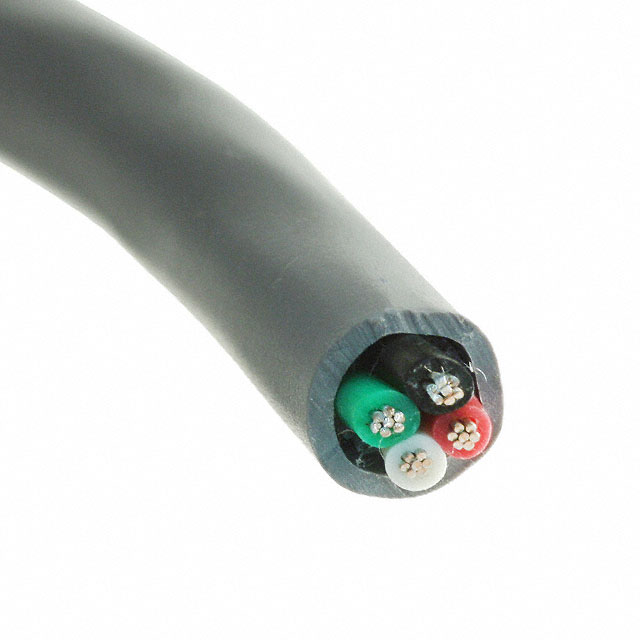

CABLE 4COND 16AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 16AWG SLATE 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1064 SL001	1064 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19	19
Conductor Strand [custom]	0.0117 in	0.0117 in
Jacket (Insulation) Diameter [diameter]	10.03 mm	10.03 mm
Jacket (Insulation) Diameter [diameter]	0.395 "	0.395 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm	1.194 mm
Jacket (Insulation) Thickness	0.047 in	0.047 in
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	500 '
Length	-	152.4 m
Number of Conductors	4	4
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	16 AWG	16 AWG

CABLE 4COND 16AWG SLATE 1000'

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Conductor Material	Usage	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Jacket (Insulation) Material	Wire Gauge	Cable Type	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Length [x]	Length [x]
ALPHA WIRE 1064 SL001	-20 C	80 C	4	Copper, Tinned	Communication, Control	1000 ft	304.8 m	19	0.0117 in	10.03 mm	0.395 "	Slate	Poly-Vinyl Chloride (PVC)	16 AWG	Multi-Conductor	600 V	1.194 mm	0.047 in	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 1064 SL002	-20 C	80 C	4	Copper, Tinned	Communication, Control			19	0.0117 in	10.03 mm	0.395 "	Slate	Poly-Vinyl Chloride (PVC)	16 AWG	Multi-Conductor	600 V	1.194 mm	0.047 in	Poly-Vinyl Chloride (PVC)	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Slate 16 AWG 1000.0' (304.8m)
