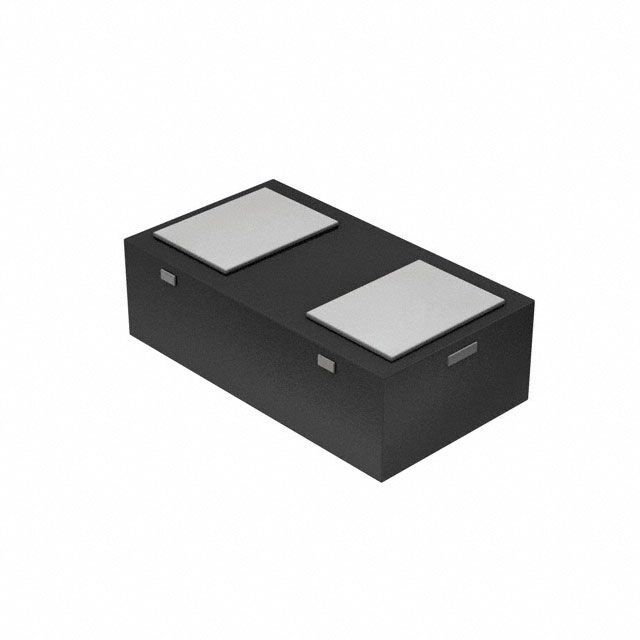

ACDBQC140L-HF

Active

Comchip Technology

DIODE SCHOTTKY 40V 1A 0402C

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 40V 1A 0402C

Technical Specifications

Parameters and characteristics for this part

Specification	ACDBQC140L-HF

Capacitance @ Vr, F	125 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	40 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	0402 (1006 Metric)
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	0402C, SOD-923F
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If [Max]	560 mV

DIODE SCHOTTKY 40V 1A 0402C

Part	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Current - Reverse Leakage @ Vr	Speed	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Qualification	Supplier Device Package	Package / Case	Grade	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)
Comchip Technology ACDBQC140L-HF	560 mV	Schottky	40 µA	200 mA, 500 ns	Surface Mount	150 °C	-55 °C	AEC-Q101	0402C, SOD-923F	0402 (1006 Metric)	Automotive	125 pF	40 V	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 1A Surface Mount 0402C/SOD-923F
