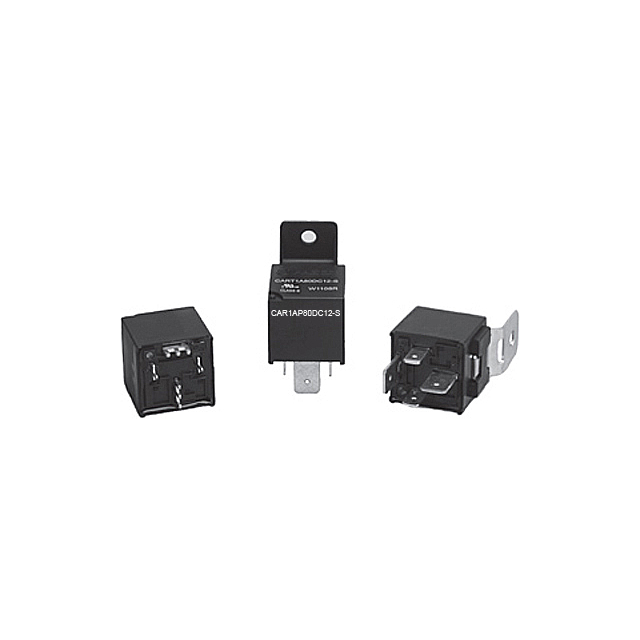

CAR1AP80DC12-S

Active

Hasco Relays

CAR80 SERIES, SPST, 80A, DC12V C

Search across all available documentation for this part.

Active

Hasco Relays

CAR80 SERIES, SPST, 80A, DC12V C

Technical Specifications

Parameters and characteristics for this part

CAR80 SERIES, SPST, 80A, DC12V C

Part	Must Operate Voltage	Termination Style	Coil Voltage	Must Release Voltage	Contact Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Switching Voltage [Max]	Contact Rating (Current)	Coil Current	Operate Time	Contact Form	Release Time
Hasco Relays CAR1AP80DC12-S	8.4 VDC	PC Pin	12 VDC	1.2 VDC	Silver Alloy	Through Hole	85 °C	-40 °C	Non Latching	14 VDC	80 A	150 mA	9 ms	SPST-NO (1 Form A)	5 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20	$ 3.42

General part information

CAR80 SERIES, SPST, 80A, DC12V C
