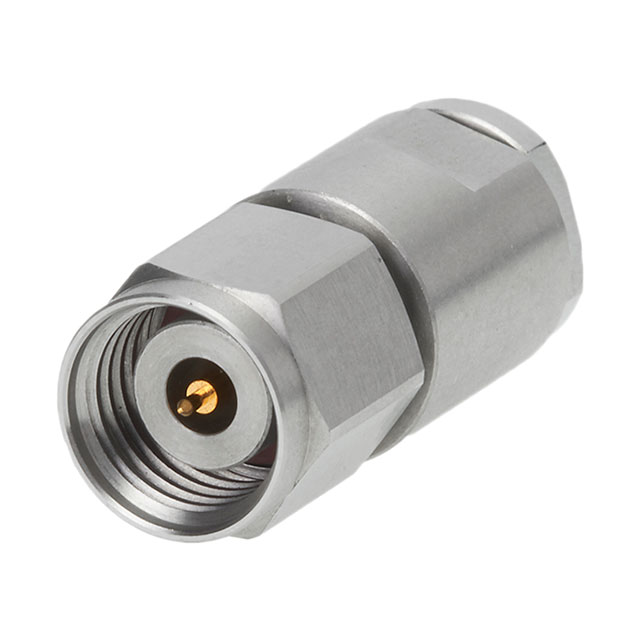

CGT-1500-M0-24M-02
ActiveCinch Connectivity Solutions Midwest Microwave
MALE 2.4MM TERMINATION, 50GHZ
Deep-Dive with AI
Search across all available documentation for this part.
CGT-1500-M0-24M-02
ActiveCinch Connectivity Solutions Midwest Microwave
MALE 2.4MM TERMINATION, 50GHZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CGT-1500-M0-24M-02 |
|---|---|
| Body Material | Stainless Steel |
| Connector Style | OS-50 |
| Connector Style | 2.4 mm |
| Connector Style | APC-2.4 |
| Connector Type | Male Pin, Plug |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Frequency - Max [Max] | 50 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging, Cap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 228.76 | |
| 10 | $ 211.99 | |||
| 25 | $ 204.36 | |||
Description
General part information
CGT-1500 Series
Terminator Coax Connector Plug, Male Pin 2.4mm (APC-2.4, OS-50) 50 Ohms
Documents
Technical documentation and resources
No documents available
