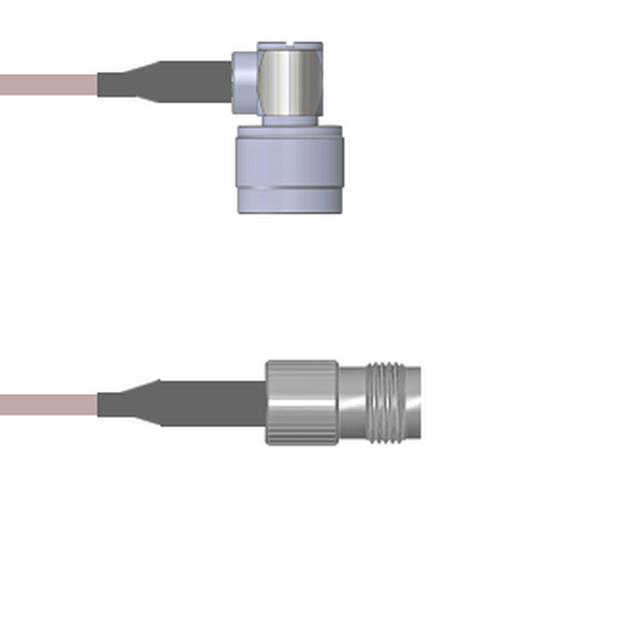

Q-2C04G0005012i

Active

Amphenol Custom Cable

COAX CBL N-TYPE TO TNC 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C04G0005012i

Active

Amphenol Custom Cable

COAX CBL N-TYPE TO TNC 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C04G0005012i

1st Connector	N-Type Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms

Q-2C04G0 Series

Part	2nd Connector Mounting Type	Color	1st Connector Mounting Type	Length	Length	2nd Connector	Cable Type	2nd Contact Gender	Features	Frequency - Max [Max]	1st Connector	Overall Impedance	1st Contact Gender	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-2C04G0003003i	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	3 in	76.2 mm	TNC Jack	RG-174	Female	Shielded	11 GHz	N-Type Plug Right Angle	50 Ohms	Male
Amphenol Custom Cable Q-2C04G0003.25M	Free Hanging (In-Line)	Black	Free Hanging (In-Line)			TNC Jack	RG-174	Female	Shielded	11 GHz	N-Type Plug Right Angle	50 Ohms	Male	9.843 "	250 mm
Amphenol Custom Cable Q-2C04G0003108i	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	108 in	2.7 m	TNC Jack	RG-174	Female	Shielded	11 GHz	N-Type Plug Right Angle	50 Ohms	Male			9 ft
Amphenol Custom Cable Q-2C04G00030.5M	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	19.69 "	50 cm	TNC Jack	RG-174	Female	Shielded	11 GHz	N-Type Plug Right Angle	50 Ohms	Male
Amphenol Custom Cable Q-2C04G0005.25M	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)			TNC Jack	RG-316	Female	Shielded	11 GHz	N-Type Plug Right Angle	50 Ohms	Male	9.843 "	250 mm
Amphenol Custom Cable Q-2C04G0003036i	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	36 in	91.44 cm	TNC Jack	RG-174	Female	Shielded	11 GHz	N-Type Plug Right Angle	50 Ohms	Male
Amphenol Custom Cable Q-2C04G0005012i	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)	12 "	304.8 mm	TNC Jack	RG-316	Female	Shielded	11 GHz	N-Type Plug Right Angle	50 Ohms	Male
Amphenol Custom Cable Q-2C04G0005.75M	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)	29.53 "	750 mm	TNC Jack	RG-316	Female	Shielded	11 GHz	N-Type Plug Right Angle	50 Ohms	Male
Amphenol Custom Cable Q-2C04G0003002M	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	78.7 in	2 m	TNC Jack	RG-174	Female	Shielded	11 GHz	N-Type Plug Right Angle	50 Ohms	Male			6.6 ft
Amphenol Custom Cable Q-2C04G0003060i	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	5 '	1.5 m	TNC Jack	RG-174	Female	Shielded	11 GHz	N-Type Plug Right Angle	50 Ohms	Male			5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 61.79
		25	$ 60.60
		50	$ 59.41
		100	$ 58.22
		250	$ 57.03

Description

General part information

Q-2C04G0 Series

Cable Assembly Coaxial N-Type to TNC RG-316 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
