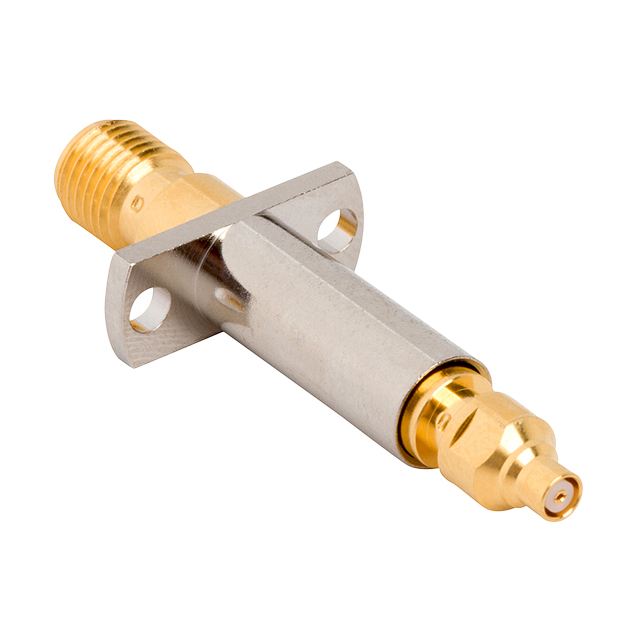

SMP-MSPR-FL-1

Active

AMPHENOL RF

SMA JACK TO SMP PLUG (FEMALE CON

Search across all available documentation for this part.

Active

AMPHENOL RF

SMA JACK TO SMP PLUG (FEMALE CON

Technical Specifications

Parameters and characteristics for this part

Specification	SMP-MSPR-FL-1

Adapter Series	SMA to SMP
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	15 GHz
Impedance	50 Ohms
Mating Cycles	100000
Mounting Feature	Flange
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Style	Straight

SMA JACK TO SMP PLUG (FEMALE CON

Part	Frequency - Max [Max]	Style	Center Contact Plating	Body Finish	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)	Center Contact Material	Conversion Type	Adapter Type	Adapter Series	Fastening Type	Impedance	Mounting Feature	Mating Cycles	Dielectric Material
AMPHENOL RF SMP-MSPR-FL-1	15 GHz	Straight	Gold	Gold	Brass	-40 °C	80 C	Female Socket, SMA Jack	Beryllium Copper	Between Series	Plug to Jack	SMA to SMP	Snap-On, Threaded	50 Ohms	Flange	100000	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMP Plug, Male Pin 50 Ohms
