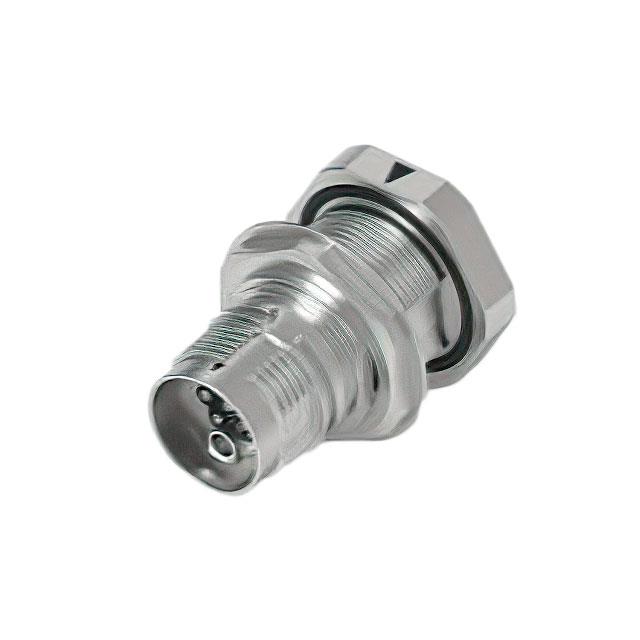

AEA047N0000051A000

Active

TE Intercontec

CONN RCPT HSG MALE 12POS PNL MT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 12POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	AEA047N0000051A000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Includes	1 O-Ring, 1 Connector, 1 Nut
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M17-12
Shielding	Unshielded
Type	For Male Pins

CONN RCPT HSG MALE 12POS PNL MT

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Material Flammability Rating	Type	Shell Size - Insert	Note	Contact Shape	Fastening Type	Shielding	Mounting Feature	Orientation	Shell Material	Shell Finish	Housing Color	Includes	Ingress Protection	Connector Type
TE Intercontec AEA047N0000051A000	12	-20 C	130 °C	Polybutylene Terephthalate (PBT)	UL94 V-0	For Male Pins	M17-12	Contacts Not Included	Circular	Push-Twist	Unshielded	Bulkhead - Front Side Nut	Keyed	Zinc Die Cast	Nickel	Silver	1 Connector, 1 Nut, 1 O-Ring	IP66/IP67	Receptacle Housing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle Housing Panel Mount

Technical documentation and resources

No documents available
