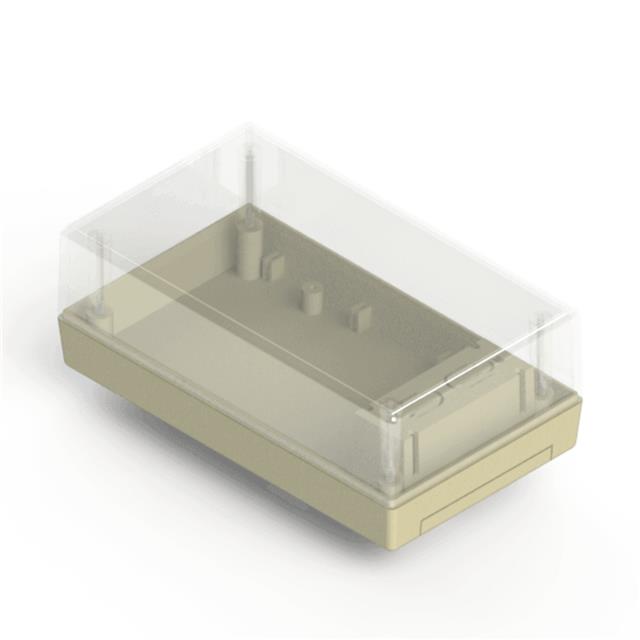

Specification	252C,AL

Area (L x W)	18.3 in²
Color	Clear Cover/Door, Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	Battery Compartment, 9V, PCB Supports
Height	2 in
Material	Polycarbonate (PC), Plastic, Polycarbonate
Ratings	IP40, NEMA 1
Size / Dimension Length	5.62 in
Size / Dimension Width	3.25 in
Thickness	0.1 in
Weight	0.289 lb

252C Series

Part	Material	Weight	Features	Size / Dimension Width	Size / Dimension Length	Color	Thickness	Height	Area (L x W)	Container Type	Design	Ratings
Serpac 252C,GY	Plastic Polycarbonate Polycarbonate (PC)	0.289 lb	9V Battery Compartment PCB Supports	3.25 in	5.62 in	Clear Cover/Door Gray	0.1 in	2 in	18.3 in²	Box	Hand Held Split Sides	IP40 NEMA 1
Serpac 252C,AL	Plastic Polycarbonate Polycarbonate (PC)	0.289 lb	9V Battery Compartment PCB Supports	3.25 in	5.62 in	Almond Clear Cover/Door	0.1 in	2 in	18.3 in²	Box	Hand Held Split Sides	IP40 NEMA 1
Serpac 252C,BK	Plastic Polycarbonate Polycarbonate (PC)	0.289 lb	9V Battery Compartment PCB Supports	3.25 in	5.62 in	Black Clear Cover/Door	0.1 in	2 in	18.3 in²	Box	Hand Held Split Sides	IP40 NEMA 1
