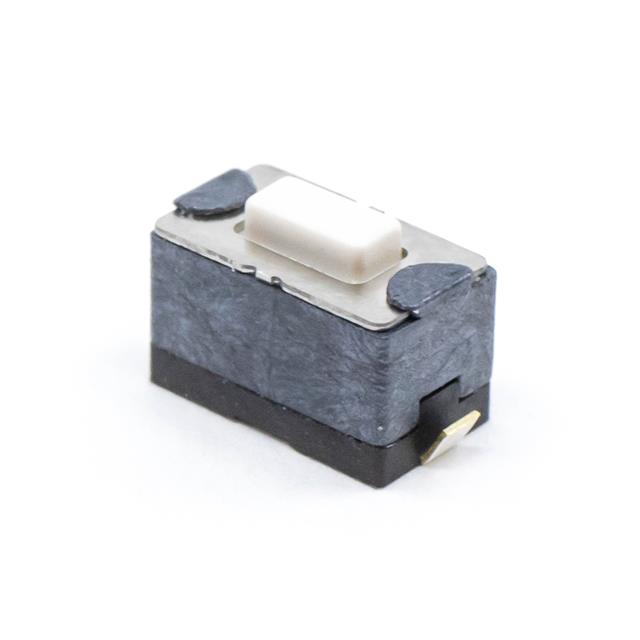

TL6400AF260QJ

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL6400AF260QJ

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	30000 Steps
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	3.5 mm
Switch Function	Off-Mom
Switch Travel	0.15 mm
Termination Style	J Lead

Part	Illumination	Mounting Type	Actuator Orientation	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Ingress Protection	Actuator Height off PCB, Vertical [z]	Actuator Type	Outline [y]	Outline [x]	Switch Function	Termination Style	Contact Rating @ Voltage	Actuator Height off PCB, Vertical	Operating Force	Mechanical Life
E-Switch TL6400AF160QJ	Non-Illuminated	Surface Mount	Top Actuated	SPST-NO	85 °C	-40 °C	0.15 mm	IP67 - Dust Tight Waterproof	4.3 mm	Rectangular Button	3.5 mm	6 mm	Off-Mom	J Lead	0.05 A 12 VDC
E-Switch TL6400BF260QJ	Non-Illuminated	Surface Mount	Top Actuated	SPST-NO	85 °C	-40 °C	0.15 mm	IP67 - Dust Tight Waterproof		Rectangular Button	3.5 mm	6 mm	Off-Mom	J Lead	0.05 A 12 VDC	5 mm	260 gf	30000 Steps
E-Switch TL6400AF260QJ	Non-Illuminated	Surface Mount	Top Actuated	SPST-NO	85 °C	-40 °C	0.15 mm	IP67 - Dust Tight Waterproof	4.3 mm	Rectangular Button	3.5 mm	6 mm	Off-Mom	J Lead	0.05 A 12 VDC		260 gf	30000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
