45214-220230

Active

3M (TC)

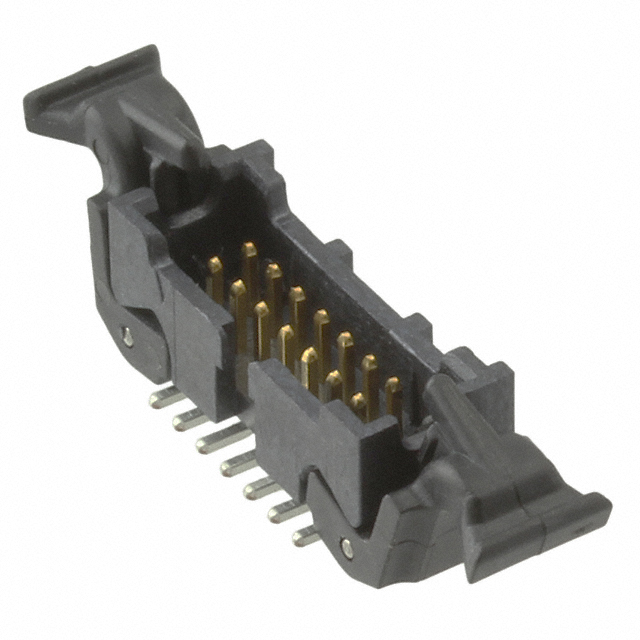

CONN, HEADER, 14POS, 2ROW, 1.27MM, SMT ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents451, 452 Series Product Spec Datasheet

45214-220230

Active

3M (TC)

CONN, HEADER, 14POS, 2ROW, 1.27MM, SMT ROHS COMPLIANT: YES

Deep-Dive with AI

Documents451, 452 Series Product Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45214-220230

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Pick and Place, Keying Slot
Insulation Height	5.65 mm
Insulation Height	0.222 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	8.13 mm, 7.21 mm, 6.6 mm, 5.84 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VDC

45214 Series

Part	Insulation Height	Insulation Height	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Features	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Style	Contact Finish - Mating	Shrouding	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Number of Rows	Contact Finish - Post	Mated Stacking Heights	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Termination	Contact Type	Voltage Rating	Mounting Type	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post
3M (TC) 45214-200230	5.65 mm	0.222 "	Header	125 °C	-65 ░C	Square	Keying Slot Pick and Place	All	30 Áin	0.76 Ám	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Gold	Shrouded - 4 Wall	Copper Alloy	0.05 in	1.27 mm	14	2	Tin	5.84 mm 6.6 mm 7.21 mm 8.13 mm	UL94 V-0	200 µin	5.08 µm	Push-Pull	Solder	Male Pin	125 VDC	Surface Mount
3M (TC) 45214-200200	5.65 mm	0.222 "	Header	125 °C	-65 ░C	Square	Keying Slot Pick and Place	All			0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Gold	Shrouded - 4 Wall	Copper Alloy	0.05 in	1.27 mm	14	2	Tin	5.84 mm 6.6 mm 7.21 mm 8.13 mm	UL94 V-0	100 µin	2.54 µm	Push-Pull	Solder	Male Pin	125 VDC	Surface Mount	Flash
3M (TC) 45214-220200	5.65 mm	0.222 "	Header	125 °C	-65 ░C	Square	Keying Slot Pick and Place	All			0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Gold	Shrouded - 4 Wall	Copper Alloy	0.05 in	1.27 mm	14	2	Tin	5.84 mm 6.6 mm 7.21 mm 8.13 mm	UL94 V-0	100 µin	2.54 µm	Latch Lock/Eject Hooks Short	Solder	Male Pin	125 VDC	Surface Mount	Flash
3M (TC) 45214-220230	5.65 mm	0.222 "	Header	125 °C	-65 ░C	Square	Keying Slot Pick and Place	All	30 Áin	0.76 Ám	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Gold	Shrouded - 4 Wall	Copper Alloy	0.05 in	1.27 mm	14	2	Tin	5.84 mm 6.6 mm 7.21 mm 8.13 mm	UL94 V-0	200 µin	5.08 µm	Latch Lock/Eject Hooks Short	Solder	Male Pin	125 VDC	Surface Mount
3M (TC) 45214-600200	5.65 mm	0.222 "	Header	125 °C	-65 ░C	Square	Keying Slot	All			0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Gold	Shrouded - 4 Wall	Copper Alloy	0.05 in	1.27 mm	14	2	Tin	5.84 mm 6.6 mm 7.21 mm 8.13 mm	UL94 V-0	100 µin	2.54 µm	Push-Pull	Solder	Male Pin	125 VDC	Through Hole	Flash	0.094 in	2.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 10.29
		10	$ 9.26
		100	$ 8.28
	Digi-Reel®	1	$ 10.29
		10	$ 9.26
		100	$ 8.28
	Tape & Reel (TR)	500	$ 6.93
		1000	$ 6.13
		1500	$ 5.95
Newark	Each	1	$ 14.09
		10	$ 13.04
		25	$ 12.12
		50	$ 11.35
		100	$ 10.71
		250	$ 10.08

Description

General part information

45214 Series

Connector Header Surface Mount 14 position 0.050" (1.27mm)

Documents

Technical documentation and resources

451, 452 Series Product Spec

Datasheet
