6781115331F
ActiveDIALIGHT
8MM HR/R PMI-12VDC W/O-RING
Deep-Dive with AI
Search across all available documentation for this part.
6781115331F
ActiveDIALIGHT
8MM HR/R PMI-12VDC W/O-RING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6781115331F | 6781115 Series |
|---|---|---|
| Current | 30 mA | 30 mA |
| Lamp Color | Red | Red |
| Lens Size | T-1 3/4 | T-1 3/4 |
| Lens Size | 5 mm | 5 mm |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 320 mcd | 320 - 2100 mcd |
| Panel Cutout Dimensions | 8.13 mm | 8.13 - 8.5 mm |
| Panel Cutout Dimensions | 0.32 in | 0.32 - 0.34 in |
| Panel Cutout Shape | Round | Round |
| Ratings | DC | DC |
| Type | LED | LED |
| Viewing Angle | 20 ° | 20 - 30 ° |
| Voltage | 12 V | 6 - 24 V |
| Wavelength - Peak | - | 624 nm |
6781115 Series
LED PANEL INDCATOR RED 24V
| Part | Viewing Angle | Type | Current | Ratings | Millicandela Rating | Panel Cutout Dimensions | Panel Cutout Dimensions | Lamp Color | Wavelength - Peak | Voltage | Lens Style | Panel Cutout Shape | Lens Size | Lens Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIALIGHT 6781115341F | 30 ° | LED | 30 mA | DC | 2100 mcd | 8.5 mm | 0.34 in | Red | 624 nm | 24 V | Round with Domed Top | Round | ||
DIALIGHT 6781115331F | 20 ° | LED | 30 mA | DC | 320 mcd | 8.13 mm | 0.32 in | Red | 12 V | Round with Domed Top | Round | T-1 3/4 | 5 mm | |
DIALIGHT 6781115321F | 30 ° | LED | 30 mA | DC | 2100 mcd | 8.5 mm | 0.34 in | Red | 624 nm | 6 V | Round with Domed Top | Round |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 9.80 | |
| 25 | $ 7.11 | |||
| 100 | $ 5.88 | |||
| 500 | $ 5.15 | |||
| 1000 | $ 4.86 | |||
| 2000 | $ 4.75 | |||
Description
General part information
6781115 Series

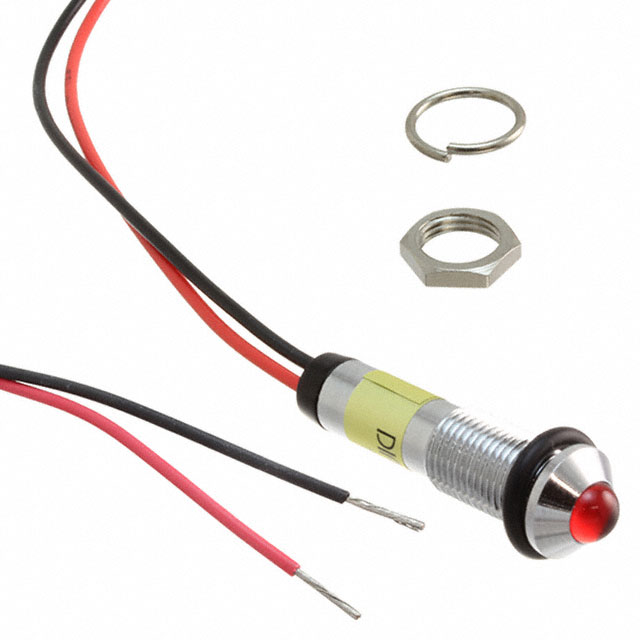

LED Panel Indicator Red 20° 12V 30mA Wire Leads - 6" (152.40mm)
