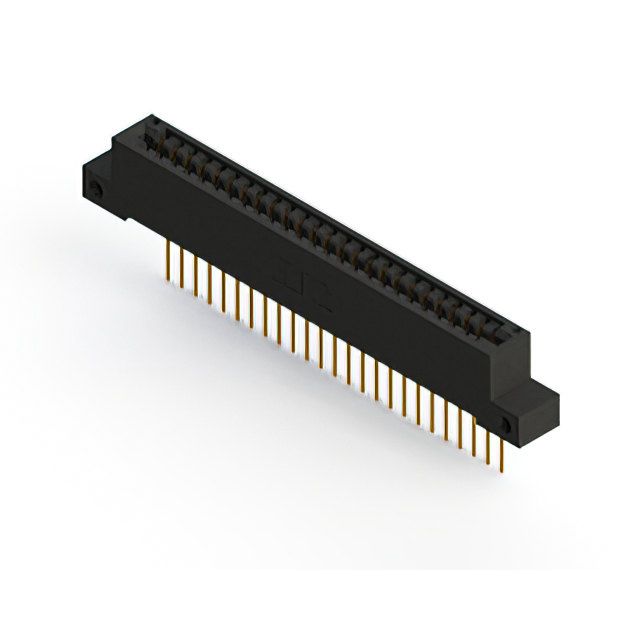

896-025-541-112

Active

EDAC Inc.

CONN EDGE SGL FMALE 25POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-025-541-112

Active

EDAC Inc.

CONN EDGE SGL FMALE 25POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	896-025-541-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions/Bay/Row [custom]	25
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

896-025 Series

...

Part	Material - Insulation	Contact Type	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions/Bay/Row [custom]	Card Type	Color	Read Out	Contact Material	Number of Rows	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Gender	Mounting Type	Flange Feature	Flange Feature
EDAC Inc. 896-025-541-112	Polyphenylene Sulfide (PPS)	Cantilever	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	10 Áin	0.25 Ám	Gold	25	Non Specified - Single Edge	Black	Single	Copper Alloy	1	0.125 in	3.18 mm	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Female	Through Hole
EDAC Inc. 896-025-520-102	Polyphenylene Sulfide (PPS)	Cantilever	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	10 Áin	0.25 Ám	Gold	25	Non Specified - Single Edge	Black	Single	Copper Alloy	1	0.125 in	3.18 mm	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Female	Through Hole
EDAC Inc. 896-025-540-101	Polyphenylene Sulfide (PPS)	Cantilever	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	10 Áin	0.25 Ám	Gold	25	Non Specified - Single Edge	Black	Single	Copper Alloy	1	0.125 in	3.18 mm				Female	Through Hole
EDAC Inc. 896-025-541-612	Polyphenylene Sulfide (PPS)	Cantilever	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	10 Áin	0.25 Ám	Gold	25	Non Specified - Single Edge	Black	Single	Copper Alloy	1	0.125 in	3.18 mm		Side Mount Opening Unthreaded		Female	Through Hole	3.25 mm	0.128 in
EDAC Inc. 896-025-541-608	Polyphenylene Sulfide (PPS)	Cantilever	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	10 Áin	0.25 Ám	Gold	25	Non Specified - Single Edge	Black	Single	Copper Alloy	1	0.125 in	3.18 mm		4-40 Threaded Insert Top Mount Opening		Female	Through Hole
EDAC Inc. 896-025-558-102	Polyphenylene Sulfide (PPS)	Cantilever	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	10 Áin	0.25 Ám	Gold	25	Non Specified - Single Edge	Black	Single	Copper Alloy	1	0.125 in	3.18 mm	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Female	Through Hole Right Angle
EDAC Inc. 896-025-559-103	Polyphenylene Sulfide (PPS)	Cantilever	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	10 Áin	0.25 Ám	Gold	25	Non Specified - Single Edge	Black	Single	Copper Alloy	1	0.125 in	3.18 mm	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Female	Through Hole Right Angle
EDAC Inc. 896-025-520-101	Polyphenylene Sulfide (PPS)	Cantilever	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	10 Áin	0.25 Ám	Gold	25	Non Specified - Single Edge	Black	Single	Copper Alloy	1	0.125 in	3.18 mm				Female	Through Hole
EDAC Inc. 896-025-540-607	Polyphenylene Sulfide (PPS)	Cantilever	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	10 Áin	0.25 Ám	Gold	25	Non Specified - Single Edge	Black	Single	Copper Alloy	1	0.125 in	3.18 mm		M3 Threaded Insert Top Mount Opening		Female	Through Hole
EDAC Inc. 896-025-500-107	Polyphenylene Sulfide (PPS)	Cantilever	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	10 Áin	0.25 Ám	Gold	25	Non Specified - Single Edge	Black	Single	Copper Alloy	1	0.125 in	3.18 mm		Flush Mount M3 Threaded Insert Top Opening		Female	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 50.57
Newark	Each	1	$ 60.68
		100	$ 50.18
		250	$ 46.91
		500	$ 44.59
		1000	$ 38.50

Description

General part information

896-025 Series

25 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
