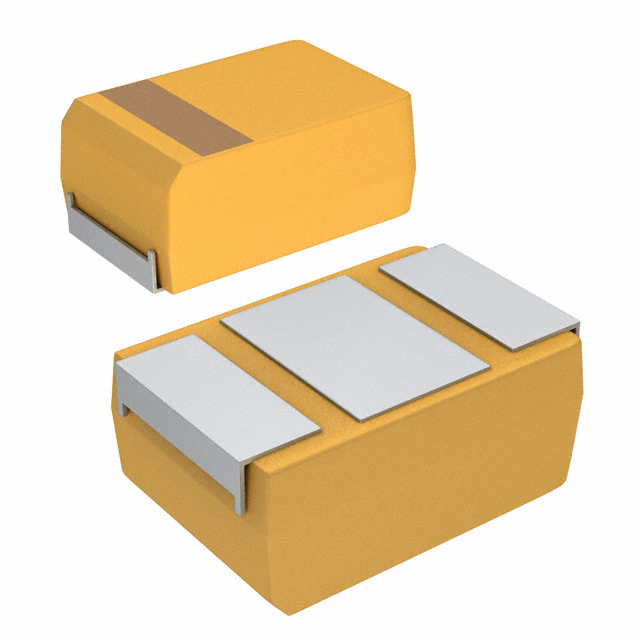

CWR09HK106KB
ActiveKEMET
TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 15V, 10% +TOL, 10% -TOL, 10UF, SURFACE MOUNT, 2214, CHIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsT409F106K015BK
CWR09HK106KB
ActiveKEMET
TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 15V, 10% +TOL, 10% -TOL, 10UF, SURFACE MOUNT, 2214, CHIP
Deep-Dive with AI
DocumentsT409F106K015BK
Technical Specifications
Parameters and characteristics for this part
| Specification | CWR09HK106KB |
|---|---|
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 2.5 Ohm |
| Failure Rate | B (0.1%) |
| Features | High Reliability |
| Grade | Military |
| Height - Seated (Max) | 2.16 mm |
| Height - Seated (Max) [Max] [z] | 0.085 in |
| Manufacturer Size Code | F |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2214 |
| Package / Case | 5634 Metric |
| Qualification | MIL-PRF-55365/4 |
| Size / Dimension [x] | 0.22 in |
| Size / Dimension [x] | 5.59 mm |
| Size / Dimension [y] | 3.43 mm |
| Size / Dimension [y] | 0.135 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 11.55 | |
| Cut Tape (CT) | 1 | $ 13.49 | ||
| 10 | $ 10.46 | |||
| 50 | $ 9.25 | |||
| 100 | $ 8.87 | |||
| Digi-Reel® | 1 | $ 13.49 | ||
| 10 | $ 10.46 | |||
| 50 | $ 9.25 | |||
| 100 | $ 8.87 | |||
| Tape & Reel (TR) | 500 | $ 7.47 | ||
Description
General part information
CWR09HK Series
10 µF Molded Tantalum Capacitors 15 V 2214 (5634 Metric) 2.5Ohm
