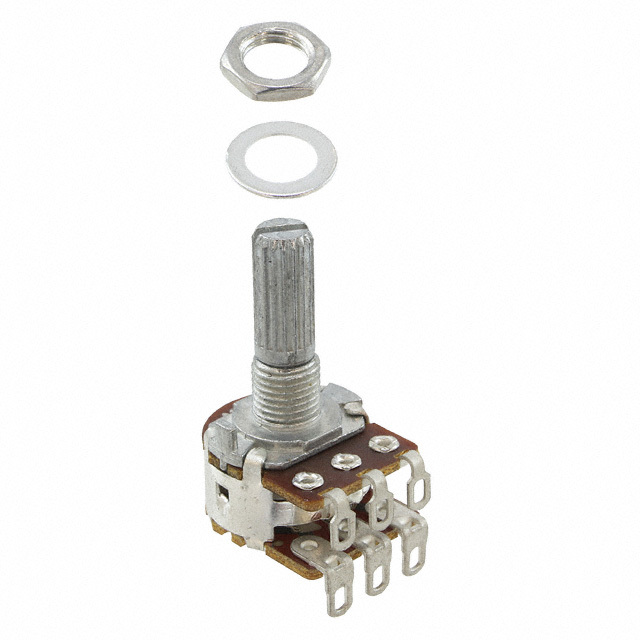

PDB182-E420K-104B1

Active

Bourns Inc.

POT 100K OHM 1/8W CARBON LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PDB182-E420K-104B1

Active

Bourns Inc.

POT 100K OHM 1/8W CARBON LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PDB182-E420K-104B1

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length [z]	20 mm
Actuator Length [z]	0.787 in
Actuator Type	Knurled and Slotted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	0.75
Bushing Thread	M7
Number of Gangs	2
Number of Turns	1
Power (Watts)	0.125 W
Power (Watts)	0.125 W
Resistance (Ohms)	100 kOhms
Resistive Material	Carbon
Rotation	300 ░
Size - Body	Round
Size - Body [diameter]	17 mm
Size - Body [diameter]	0.669 in
Taper	Linear
Termination Style	Solder Lug
Tolerance	20 %

PDB182 Series

Part	Resistance (Ohms)	Size - Body [diameter]	Size - Body	Size - Body [diameter]	Actuator Type	Termination Style	Resistive Material	Rotation	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Number of Gangs	Power (Watts)	Taper	Actuator Length [x]	Actuator Length [x]	Number of Turns	Tolerance	Bushing Thread	Bushing Thread	Adjustment Type	Built in Switch	Actuator Length	Actuator Length [z]	Actuator Length [z]	Resistance (Ohms)	Power (Watts)	Power (Watts)
Bourns Inc. PDB182-K425K-103A	10k	17 mm	Round	0.669 in	Knurled and Slotted	PC Pins	Carbon	300 ░	0.236 in	6 mm	2	0.06 W	Logarithmic	0.984 in	25 mm	1	20 %	0.75	M7	Side Adjustment
Bourns Inc. PDB182-GTRB2-254MN	250k	17 mm	Round	0.669 in	Round	Solder Lug	Carbon	300 ░	0.236 in	6 mm	2	0.06 W	Linear			1	20 %		3/8-32	User Defined	Detent	19 mm	0.748 in
Bourns Inc. PDB182-K230K-104A		17 mm	Round	0.669 in	Knurled and Slotted	PC Pins	Carbon	300 ░	0.236 in	6 mm	2	0.06 W	Logarithmic			1	20 %	0.75	M7	Side Adjustment	Detent		1.181 in	30 mm	100 kOhms
Bourns Inc. PDB182-K215K-503A1		17 mm	Round	0.669 in	Knurled and Slotted	PC Pins	Carbon	300 ░	0.236 in	6 mm	2	0.06 W	Logarithmic			1	20 %	0.75	M7	Side Adjustment	Detent	15 mm	0.591 in		50 kOhms
Bourns Inc. PDB182-D415F-203A		17 mm	Round	0.669 in	Flatted	PC Pins	Carbon	300 ░	0.236 in	6 mm	2	0.06 W	Logarithmic			1	20 %	0.75	M7	Side Adjustment		15 mm	0.591 in		20 kOhms
Bourns Inc. PDB182-K420K-103A	10k	17 mm	Round	0.669 in	Knurled and Slotted	PC Pins	Carbon	300 ░	0.236 in	6 mm	2	0.06 W	Logarithmic			1	20 %	0.75	M7	Side Adjustment			0.787 in	20 mm
Bourns Inc. PDB182-E425K-254A2	250k	17 mm	Round	0.669 in	Knurled and Slotted	Solder Lug	Carbon	300 ░	0.236 in	6 mm	2	0.06 W	Logarithmic	0.984 in	25 mm	1	20 %	0.75	M7	User Defined
Bourns Inc. PDB182-K220K-102B		17 mm	Round	0.669 in	Knurled and Slotted	PC Pins	Carbon	300 ░	0.236 in	6 mm	2		Linear			1	20 %	0.75	M7	Side Adjustment	Detent		0.787 in	20 mm	1 kOhms	0.125 W	0.125 W
Bourns Inc. PDB182-GTR01-254A2	250k	17 mm	Round	0.669 in	Knurled and Slotted	Solder Lug	Carbon	300 ░	0.236 in	6 mm	2	0.06 W	Logarithmic			1	20 %		3/8-32	User Defined		19 mm	0.748 in
Bourns Inc. PDB182-E420K-104B1		17 mm	Round	0.669 in	Knurled and Slotted	Solder Lug	Carbon	300 ░	0.236 in	6 mm	2		Linear			1	20 %	0.75	M7	User Defined			0.787 in	20 mm	100 kOhms	0.125 W	0.125 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 1.30

Description

General part information

PDB182 Series

100k Ohm 2 Gang Linear Panel Mount Potentiometer 1.0 Turns Carbon 0.125W, 1/8W Solder Lug
