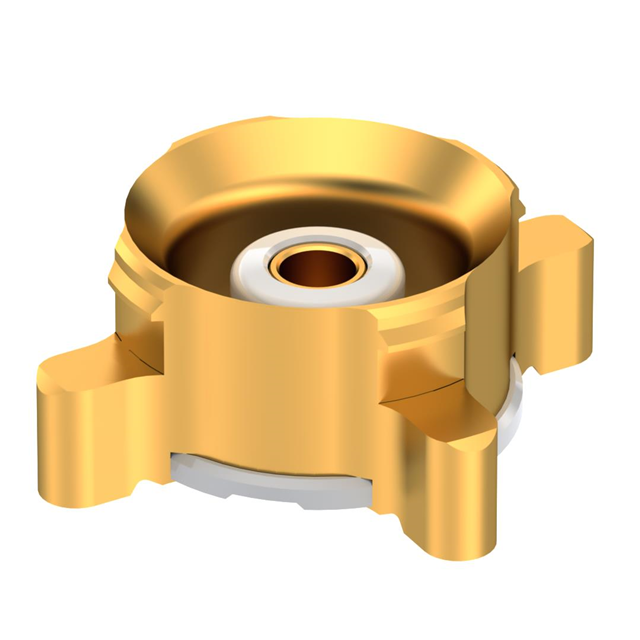

Specification	R223424800

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMBX
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Snap-On
Frequency - Max	12.4 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Solder
Voltage Rating	330 V

R22342 Series

Part	Body Material	Body Finish	Center Contact Plating	Operating Temperature (Max)	Operating Temperature (Min)	Mating Cycles	Dielectric Material	Voltage Rating	Mounting Type	Fastening Type	Number of Ports	Frequency - Max	Connector Type	Center Contact Material	Impedance	Contact Termination	Housing Color	Shield Termination	Connector Style
Radiall USA, Inc. R223423010	Brass	Gold	Gold	155 °C	-55 °C	100 cycles	Liquid Crystal Polymer (LCP)	330 V	Board Edge Cutout Surface Mount	Snap-On	1	12.4 GHz	Female Socket Jack	Brass	50 Ohm	Solder	Gold	Solder	MMBX
Radiall USA, Inc. R223425000W	Brass	Gold	Gold	155 °C	-55 °C	100 cycles	Polytetrafluoroethylene (PTFE)		Through Hole	Snap-On	1	12.4 GHz	Female Socket Recepture	Beryllium Copper	50 Ohm	Solder	Gold	Solder	MMBX
Radiall USA, Inc. R223423000	Brass	Gold	Gold	155 °C	-55 °C	100 cycles	Liquid Crystal Polymer (LCP) Polytetrafluoroethylene (PTFE)	330 V	Through Hole	Snap-On	1	12.4 GHz	Female Socket Jack	Brass	50 Ohm	Solder	Gold	Solder	MMBX
Radiall USA, Inc. R223424000	Brass	Gold	Gold	155 °C	-55 °C	100 cycles	Liquid Crystal Polymer (LCP)	330 V	Surface Mount	Snap-On	1	12.4 GHz	Female Socket Jack	Brass	50 Ohm	Solder	Gold	Solder	MMBX
Radiall USA, Inc. R223424000W	Brass	Gold	Gold	155 °C	-55 °C	100 cycles	Liquid Crystal Polymer (LCP)	330 V	Surface Mount	Snap-On	1	12.4 GHz	Female Socket Jack	Brass	50 Ohm	Solder	Gold	Solder	MMBX
Radiall USA, Inc. R223424800	Brass	Gold	Gold	155 °C	-55 °C	100 cycles	Liquid Crystal Polymer (LCP)	330 V	Surface Mount	Snap-On	1	12.4 GHz	Female Socket Jack	Brass	50 Ohm	Solder	Gold	Solder	MMBX
Radiall USA, Inc. R223425000	Brass	Gold	Gold	155 °C	-55 °C	100 cycles	Liquid Crystal Polymer (LCP)	335 V	Through Hole	Snap-On	1	12.4 GHz	Female Socket Jack	Brass	50 Ohm	Solder	Gold	Solder	MMBX
