336203-12-0050

Active

Amphenol RF

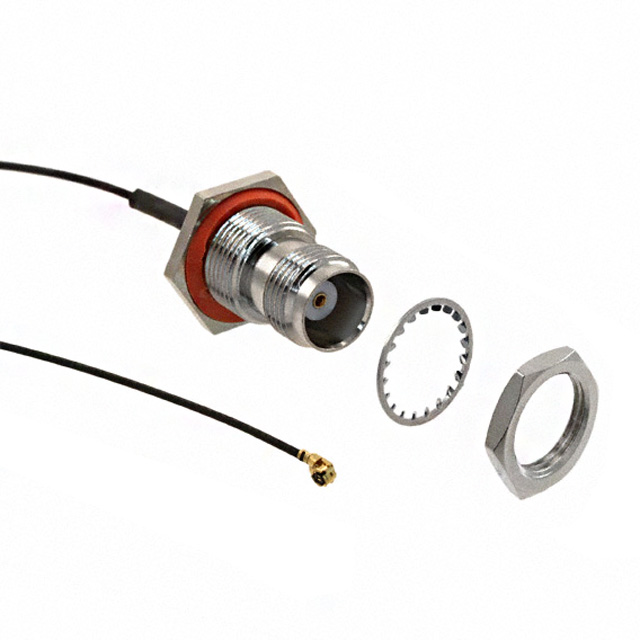

CBL ASSY U.FL-TNC PLG-JCK 1.969"

Search across all available documentation for this part.

Active

Amphenol RF

CBL ASSY U.FL-TNC PLG-JCK 1.969"

Technical Specifications

Parameters and characteristics for this part

Specification	336203-12-0050

1st Connector	U.FL (UMCC), AMC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Black
Frequency - Max [Max]	6000 MHz
Length [x]	1.969 in
Length [x]	50 mm
Overall Impedance	50 Ohms
Style	AMC to TNC, U.FL (UMCC)

Part	Cable Type	Frequency - Max [Max]	2nd Connector	Style	2nd Connector Mounting Feature	2nd Contact Gender	Color	Overall Impedance	1st Connector	Length [x]	Length [x]	1st Connector Mounting Type	2nd Connector Mounting Type	1st Contact Gender	Length	Length
Amphenol RF 336203-12-0050	1.13mm OD Coaxial Cable	6000 MHz	TNC Jack	AMC to TNC U.FL (UMCC)	Bulkhead - Front Side Nut	Female	Black	50 Ohms	U.FL (UMCC) AMC Plug Right Angle	1.969 in	50 mm	Free Hanging (In-Line)	Panel Mount	Female
Amphenol RF 336203-12-0200	1.13mm OD Coaxial Cable	6000 MHz	TNC Jack	AMC to TNC U.FL (UMCC)	Bulkhead - Front Side Nut	Female	Black	50 Ohms	U.FL (UMCC) AMC Plug Right Angle			Free Hanging (In-Line)	Panel Mount	Female	7.874 in	200 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial U.FL (UMCC), AMC to TNC 1.13mm OD Coaxial Cable 1.969" (50.00mm)
