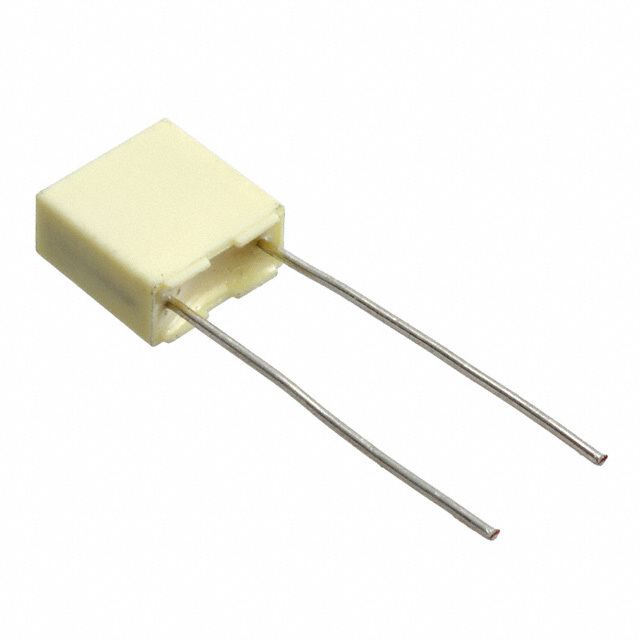

R82IC2330Z350K

Active

KEMET

CAP FILM 0.033UF 10% 250VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet R82IC2330Z350K +1

R82IC2330Z350K

Active

KEMET

CAP FILM 0.033UF 10% 250VDC RAD

Deep-Dive with AI

DocumentsDatasheet R82IC2330Z350K +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R82IC2330Z350K

Applications	Automotive
Capacitance	0.033 çF
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Height - Seated (Max) [Max] [z]	0.299 in
Height - Seated (Max) [Max] [z]	7.6 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	0.283 in, 7.2 mm
Size / Dimension [y]	3.5 mm, 0.138 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	160 V
Voltage Rating - DC	250 V

R82IC Series

Part	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Dielectric Material	Tolerance	Package / Case	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Voltage Rating - DC	Capacitance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Termination	Applications	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R82IC3150DQ50J	160 V	7.2 mm	0.283 in	0.236 in	6 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	Radial	5 mm	0.197 in	105 ░C	-55 °C	AEC-Q200	250 V	0.15 ÁF	Through Hole	0.437 in	11.1 mm	PC Pins	Automotive
KEMET R82IC2150CK50J	160 V	7.2 mm	0.283 in	0.098 in		Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	Radial	5 mm	0.197 in	105 ░C	-55 °C	AEC-Q200	250 V	15000 pF	Through Hole			PC Pins	Automotive	2.5 mm	0.26 in	6.6 mm
KEMET R82IC2150Z350J	160 V	7.2 mm	0.283 in	0.098 in		Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	Radial	5 mm	0.197 in	105 ░C	-55 °C	AEC-Q200	250 V	15000 pF	Through Hole			PC Pins	Automotive	2.5 mm	0.26 in	6.6 mm
KEMET R82IC2330Z350K	160 V	0.283 in 7.2 mm			0.138 in 3.5 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	Radial	5 mm	0.197 in	105 ░C	-55 °C	AEC-Q200	250 V	0.033 çF	Through Hole			PC Pins	Automotive		0.299 in	7.6 mm
KEMET R82IC2220DQ50K	160 V	0.283 in 7.2 mm			0.138 in 3.5 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	Radial	5 mm	0.197 in	105 ░C	-55 °C	AEC-Q200	250 V	0.022 µF	Through Hole			PC Pins	Automotive		0.299 in	7.6 mm
KEMET R82IC3220DQ60K	140 V	7.2 mm	0.283 in	0.236 in	6 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	Radial	5 mm	0.197 in	105 ░C	-55 °C	AEC-Q200	250 V	0.22 µF	Through Hole	0.437 in	11.1 mm	PC Pins	Automotive
KEMET R82IC3150AA50K	160 V	7.2 mm	0.283 in	0.236 in	6 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	Radial	5 mm	0.197 in	105 ░C	-55 °C	AEC-Q200	250 V	0.15 ÁF	Through Hole	0.437 in	11.1 mm	PC Pins	Automotive
KEMET R82IC3100SH55J	160 V	7.2 mm	0.283 in	0.197 "	5 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	Radial	5 mm	0.197 in	105 ░C	-55 °C	AEC-Q200	250 V	100000 pF	Through Hole			PC Pins	Automotive
KEMET R82IC2470DQ50K	160 V	7.2 mm	0.283 in	0.177 "	4.5 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	Radial	5 mm	0.197 in	105 ░C	-55 °C	AEC-Q200	250 V		Through Hole			PC Pins	Automotive		0.378 "	9.6 mm
KEMET R82IC2220DQ60J	140 V	7.2 mm	0.283 in	0.098 in		Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	Radial	5 mm	0.197 in	105 ░C	-55 °C	AEC-Q200	250 V	0.022 µF	Through Hole			PC Pins	Automotive	2.5 mm	0.26 in	6.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30000	$ 0.09
Newark	Each	2500	$ 0.09

Description

General part information

R82IC Series

0.033 µF Film Capacitor 160V 250V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
