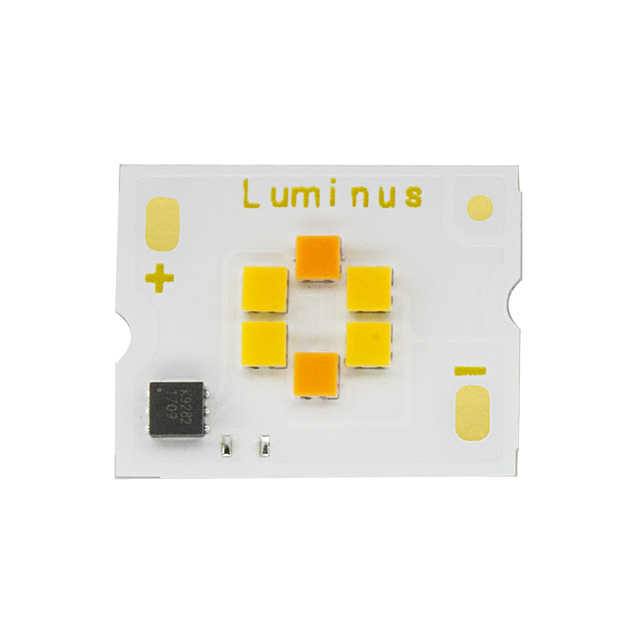

CDM-6-3018-90-18-DW01

Active

Luminus Devices Inc.

LED MOD CDM WARM WHT RECT 3000K

Search across all available documentation for this part.

Active

Luminus Devices Inc.

LED MOD CDM WARM WHT RECT 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	CDM-6-3018-90-18-DW01

CCT (K) [Max]	3000 K
CCT (K) [Min]	1800 K
Color	White, Warm
Configuration	Rectangle
CRI (Color Rendering Index)	90
Current - Max [Max]	440 mA
Current - Test	300 mA
Features	Dimming - Warm
Height [z]	1.58 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	6.8 mm
Lumens/Watt @ Current - Test	92 lm/W
Luminous Flux @ Current/Temperature	490 lm
Size / Dimension [x]	15 mm
Size / Dimension [y]	12 mm
Temperature - Test	85 °C
Type	LED Module
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	17.8 V

LED MOD CDM WARM WHT RECT 3000K

Part	Temperature - Test	Lens Type	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Type	Lumens/Watt @ Current - Test	Color	Height [z]	Configuration	CCT (K) [Max]	CCT (K) [Min]	Current - Max [Max]	Current - Test	Viewing Angle	Voltage - Forward (Vf) (Typ)	Features	Light Emitting Surface (LES) [diameter]
Luminus Devices Inc. CDM-6-3018-90-18-DW01	85 °C	Flat	490 lm	12 mm	15 mm	90	LED Module	92 lm/W	Warm, White	1.58 mm	Rectangle	3000 K	1800 K	440 mA	300 mA	130 °	17.8 V	Dimming - Warm	6.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module CDM, Human Centric (HCL) White, Warm Rectangle
