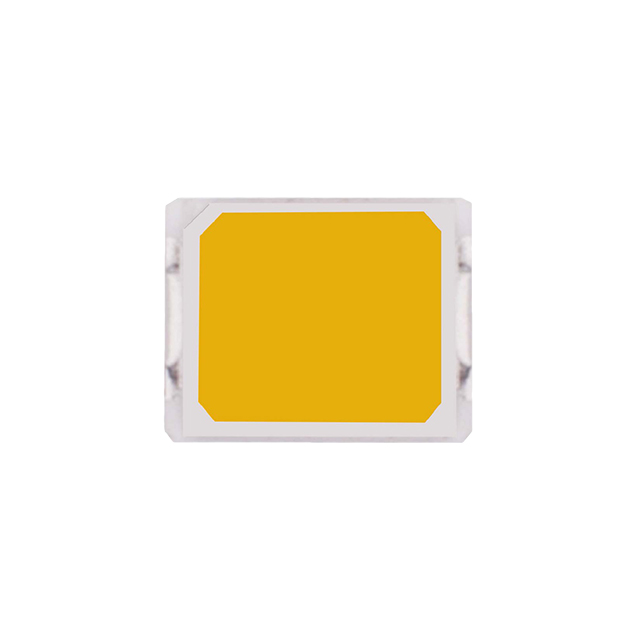

BXEN-50E-11L-3C-00-0-0

Active

BRIDGELUX

LED GEN2 COOL WHITE 5000K 2835

Search across all available documentation for this part.

Active

BRIDGELUX

LED GEN2 COOL WHITE 5000K 2835

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXEN-50E-11L-3C-00-0-0	BXEN-50 Series

CCT (K)	5000 K	5000 K
Color	Cool, White	Cool, White
CRI (Color Rendering Index)	80	80 - 95
Current - Max [Max]	80 mA	80 - 150 mA
Current - Test	60 mA	60 - 150 mA
Flux @ 25°C, Current - Test	-	107 lm
Flux @ 85°C, Current - Test	28 lm	28 - 97 lm
Height - Seated (Max) [Max]	0.7 mm	0.7 mm
Height - Seated (Max) [Max]	0.028 in	0.028 in
Lumens/Watt @ Current - Test	-	118 - 133 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1113 (2835 Metric)	1113 (2835 Metric)
Size / Dimension [x]	2.74 mm	2.74 mm
Size / Dimension [x]	0.108 "	0.108 "
Size / Dimension [y]	0.134 in	0.134 in
Size / Dimension [y]	3.4 mm	3.4 mm
Supplier Device Package	2835	2835
Thermal Resistance of Package	-	16 °C/W
Thermal Resistance of Package [custom]	8 °C/W	8 - 12 °C/W
Viewing Angle	116 °	116 - 120 °
Voltage - Forward (Vf) (Typ)	2.7 V	2.7 - 9.1 V

LED GEN2 COOL WHITE 5000K 2835

Part	Package / Case	CRI (Color Rendering Index)	Thermal Resistance of Package [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Test	Viewing Angle	Voltage - Forward (Vf) (Typ)	Flux @ 85°C, Current - Test	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Color	CCT (K)	Current - Max [Max]	Lumens/Watt @ Current - Test	Thermal Resistance of Package	Flux @ 25°C, Current - Test
BRIDGELUX BXEN-50E-11L-3C-00-0-0	1113 (2835 Metric)	80	8 °C/W	0.134 in	3.4 mm	2.74 mm	0.108 "	60 mA	116 °	2.7 V	28 lm	Surface Mount	0.7 mm	0.028 in	2835	Cool, White	5000 K	80 mA
BRIDGELUX BXEN-50E-21M-3A-00-0-0	1113 (2835 Metric)	80	12 °C/W	0.134 in	3.4 mm	2.74 mm	0.108 "	150 mA		3 V	60 lm	Surface Mount	0.7 mm	0.028 in	2835	Cool, White	5000 K	150 mA	133 lm/W
BRIDGELUX BXEN-50E-11L-3B-00-0-0	1113 (2835 Metric)	80	8 °C/W	0.134 in	3.4 mm	2.74 mm	0.108 "	60 mA		2.7 V	28 lm	Surface Mount	0.7 mm	0.028 in	2835	Cool, White	5000 K
BRIDGELUX BXEN-50S-13H-9C-00-0-0	1113 (2835 Metric)	95		0.134 in	3.4 mm	2.74 mm	0.108 "	100 mA	120 °	9.1 V	97 lm	Surface Mount	0.7 mm	0.028 in	2835	Cool, White	5000 K	120 mA	118 lm/W	16 °C/W	107 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Gen2 White, Cool 5000K 2.7V 60mA 116° 1113 (2835 Metric)
