1058675-1
ActiveTE Connectivity AMP Connectors

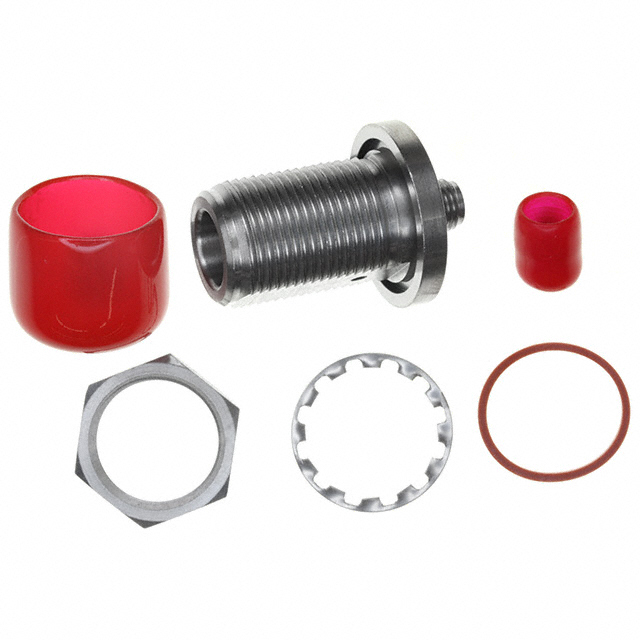

CONN ADAPT SMA JACK TO N JACK
Deep-Dive with AI
Search across all available documentation for this part.
1058675-1
ActiveTE Connectivity AMP Connectors
CONN ADAPT SMA JACK TO N JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1058675-1 |
|---|---|
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Female Socket, N Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mounting Feature | Bulkhead |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1058675 Series
CONN ADAPT SMA JACK TO N JACK
| Part | Frequency - Max [Max] | Adapter Type | Dielectric Material | Body Material | Convert From (Adapter End) | Includes | Mounting Feature | Impedance | Convert To (Adapter End) | Center Gender | Center Contact Plating | Center Contact Material | Conversion Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1058675-1 | 18 GHz | Jack to Jack | Polytetrafluoroethylene (PTFE) | Stainless Steel | Female Socket, SMA Jack | 1 Connector, 1 Lockwasher, 1 Nut | Bulkhead | 50 Ohms | Female Socket, N Jack | Female to Female | Gold | Beryllium Copper | Between Series | Straight |
Description
General part information
1058675 Series
Adapter Coaxial Connector SMA Jack, Female Socket To N Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
