Description

General part information

857-035 Series

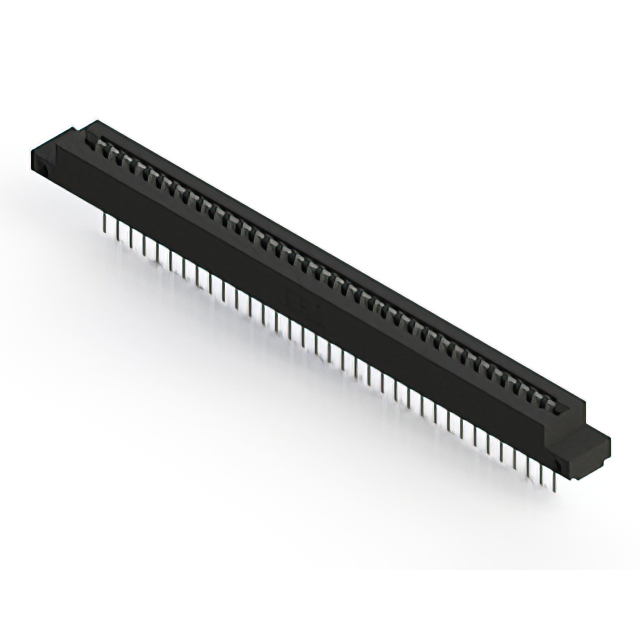

35 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	857-035-447-112

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature Diameter	0.128 in
Gender	Female
Material - Insulation	PPS, Polyphenylene Sulfide
Mounting Type	Through Hole
Number of Positions	35
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1 rows

857-035 Series

...

Part	Number of Positions	Card Thickness (Min)	Card Thickness (Max)	Termination	Pitch	Contact Type	Card Type	Read Out	Operating Temperature (Max)	Operating Temperature (Min)	Color	Mounting Type	Number of Rows	Contact Finish Thickness	Contact Material	Contact Finish	Gender	Material - Insulation	Termination Rows	Flange Feature	Flange Feature Diameter
EDAC Inc. 857-035-531-101	35	0.054 in	0.07 in	Solder	0.156 in	Semi Bellows	Non Specified Single Edge	Single	125 °C	-40 °C	Black	Through Hole	1	10 Ąin	Copper Alloy	Gold	Female	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 857-035-459-101	35	0.054 in	0.07 in	Solder	0.156 in	Semi Bellows	Non Specified Single Edge	Single	125 °C	-40 °C	Black	Right Angle Through Hole	1		Copper Alloy	Tin	Female	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 857-035-458-107	35	0.054 in	0.07 in	Solder	0.156 in	Semi Bellows	Non Specified Single Edge	Single	125 °C	-40 °C	Black	Right Angle Through Hole	1		Copper Alloy	Tin	Female	Polyphenylene Sulfide PPS	1 rows	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 857-035-557-108	35 70	0.054 in	0.07 in	Solder	0.156 in	Semi Bellows	Dual Edge Non Specified	Dual	125 °C	-40 °C	Black	Right Angle Through Hole	2	10 Ąin	Copper Alloy	Gold	Female	Polyphenylene Sulfide PPS	1 rows	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 857-035-505-102	35	0.054 in	0.07 in	Solder Eyelet(s)	0.156 in	Semi Bellows	Non Specified Single Edge	Single	125 °C	-40 °C	Black	Through Hole	1	10 Ąin	Copper Alloy	Gold	Female	Polyphenylene Sulfide PPS	1 rows	Flush Mount Top Opening Unthreaded	0.128 in
EDAC Inc. 857-035-447-112	35	0.054 in	0.07 in	Wire Wrap	0.156 in	Semi Bellows	Non Specified Single Edge	Single	125 °C	-40 °C	Black	Through Hole	1		Copper Alloy	Tin	Female	Polyphenylene Sulfide PPS	1 rows	Side Mount Opening Unthreaded	0.128 in
EDAC Inc. 857-035-547-103	35	0.054 in	0.07 in	Wire Wrap	0.156 in	Semi Bellows	Non Specified Single Edge	Single	125 °C	-40 °C	Black	Through Hole	1	10 Ąin	Copper Alloy	Gold	Female	Polyphenylene Sulfide PPS	1 rows	Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 857-035-445-112	35	0.054 in	0.07 in	Wire Wrap	0.156 in	Semi Bellows	Non Specified Single Edge	Single	125 °C	-40 °C	Black	Through Hole	1		Copper Alloy	Tin	Female	Polyphenylene Sulfide PPS	1 rows	Side Mount Opening Unthreaded	0.128 in
EDAC Inc. 857-035-425-108	35	0.054 in	0.07 in	Solder	0.156 in	Semi Bellows	Non Specified Single Edge	Single	125 °C	-40 °C	Black	Through Hole	1		Copper Alloy	Tin	Female	Polyphenylene Sulfide PPS	1 rows	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 857-035-527-101	35	0.054 in	0.07 in	Solder	0.156 in	Semi Bellows	Non Specified Single Edge	Single	125 °C	-40 °C	Black	Through Hole	1	10 Ąin	Copper Alloy	Gold	Female	Polyphenylene Sulfide PPS	1 rows
