Q-2102D000R009i

Active

Amphenol Custom Cable

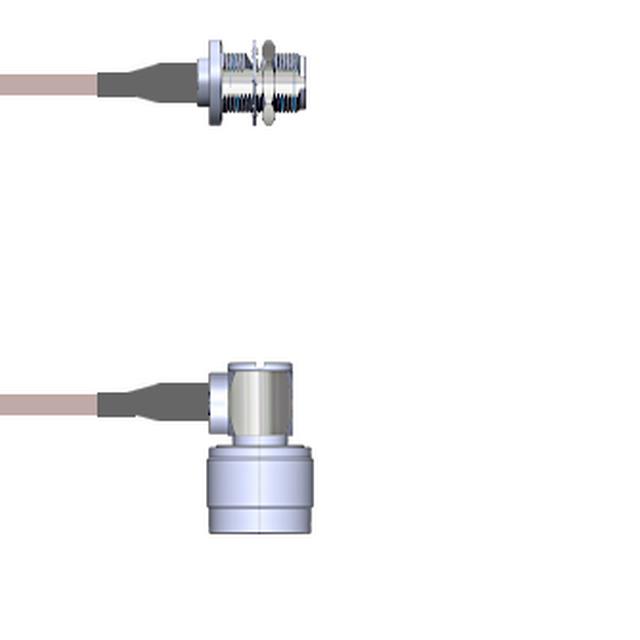

CBL ASSY NTYPE JACK TO PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2102D000R009i

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2102D000R009i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-2102D0 Series

Part	2nd Connector	1st Connector Mounting Feature	Overall Impedance	Frequency - Max [Max]	Length	Length	Length	2nd Connector Mounting Type	1st Connector Mounting Type	1st Contact Gender	Features	Style	Color	Cable Type	1st Connector	2nd Contact Gender	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2102D000R2.5M	N-Type Plug Right Angle	Bulkhead - Front Side Nut	50 Ohms	11 GHz	8.2 '	98.4 in	2.5 m	Free Hanging (In-Line)	Panel Mount	Female	Shielded	N-Type to N-Type	Copper	RG-316 DB	N-Type Jack	Male
Amphenol Custom Cable Q-2102D000R018i	N-Type Plug Right Angle	Bulkhead - Front Side Nut	50 Ohms	11 GHz				Free Hanging (In-Line)	Panel Mount	Female	Shielded	N-Type to N-Type	Copper	RG-316 DB	N-Type Jack	Male	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2102D000R108i	N-Type Plug Right Angle	Bulkhead - Front Side Nut	50 Ohms	11 GHz	9 ft	108 in	2.7 m	Free Hanging (In-Line)	Panel Mount	Female	Shielded	N-Type to N-Type	Copper	RG-316 DB	N-Type Jack	Male
Amphenol Custom Cable Q-2102D000R1.5M	N-Type Plug Right Angle	Bulkhead - Front Side Nut	50 Ohms	11 GHz	4.9 ft	59.1 in	1.5 m	Free Hanging (In-Line)	Panel Mount	Female	Shielded	N-Type to N-Type	Copper	RG-316 DB	N-Type Jack	Male
Amphenol Custom Cable Q-2102D000R.25M	N-Type Plug Right Angle	Bulkhead - Front Side Nut	50 Ohms	11 GHz				Free Hanging (In-Line)	Panel Mount	Female	Shielded	N-Type to N-Type	Copper	RG-316 DB	N-Type Jack	Male		250 mm	9.843 "
Amphenol Custom Cable Q-2102D000R048i	N-Type Plug Right Angle	Bulkhead - Front Side Nut	50 Ohms	11 GHz	4 ft	48 in	1200 mm	Free Hanging (In-Line)	Panel Mount	Female	Shielded	N-Type to N-Type	Copper	RG-316 DB	N-Type Jack	Male
Amphenol Custom Cable Q-2102D000R001M	N-Type Plug Right Angle	Bulkhead - Front Side Nut	50 Ohms	11 GHz	3.3 ft	39.4 in	1 m	Free Hanging (In-Line)	Panel Mount	Female	Shielded	N-Type to N-Type	Copper	RG-316 DB	N-Type Jack	Male
Amphenol Custom Cable Q-2102D000R003M	N-Type Plug Right Angle	Bulkhead - Front Side Nut	50 Ohms	11 GHz	9.8 '	118.1 in	3 m	Free Hanging (In-Line)	Panel Mount	Female	Shielded	N-Type to N-Type	Copper	RG-316 DB	N-Type Jack	Male
Amphenol Custom Cable Q-2102D000R009i	N-Type Plug Right Angle	Bulkhead - Front Side Nut	50 Ohms	11 GHz		9 "	228.6 mm	Free Hanging (In-Line)	Panel Mount	Female	Shielded	N-Type to N-Type	Copper	RG-316 DB	N-Type Jack	Male
Amphenol Custom Cable Q-2102D000R036i	N-Type Plug Right Angle	Bulkhead - Front Side Nut	50 Ohms	11 GHz		36 in	91.44 cm	Free Hanging (In-Line)	Panel Mount	Female	Shielded	N-Type to N-Type	Copper	RG-316 DB	N-Type Jack	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 109.83
		25	$ 107.72
		50	$ 105.61
		100	$ 103.50
		250	$ 101.39

Description

General part information

Q-2102D0 Series

Cable Assembly Coaxial N-Type to N-Type RG-316 DB 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
