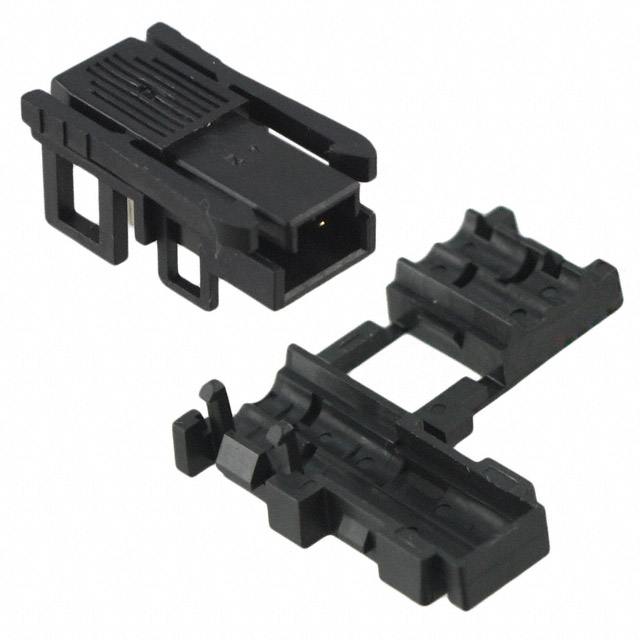

38102-0018-000 FL - 38102-0018-000 FL

38102-0018-000 FL

Active
3M (TC)

IDC CONNECTOR, IDC PLUG, MALE, 2.54 MM, 1 ROW, 2 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

38102-0018-000 FL - 38102-0018-000 FL

38102-0018-000 FL

Active
3M (TC)

IDC CONNECTOR, IDC PLUG, MALE, 2.54 MM, 1 ROW, 2 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification38102-0018-000 FL
Cable TerminationIDC
ColorBlack
Connector TypeSelf Mating
Contact FinishGold
Contact TypeNon-Gender Specific
Fastening TypeLatch Lock
Mounting TypeFree Hanging (In-Line)
Number of Positions2
Number of Rows1
Pitch [x]2.54 mm
Pitch [x]0.1 in
Wire Gauge18 AWG
Wire TypeDiscrete or Ribbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 4.19
10$ 3.80
25$ 3.60
40$ 3.52
100$ 3.35
300$ 2.93
500$ 2.85
1000$ 2.43
2400$ 2.26
NewarkEach 100$ 3.25
100$ 3.25
250$ 2.87
250$ 2.87
500$ 2.78
500$ 2.78
1000$ 2.37
1000$ 2.37

Description

General part information

38102 Series

The 381 series wire mount IDC Socket accepts multiple wire diameters of 1.1 to 2.54mm and conductor sizes of 18 to 22AWG. The T-tap termination enables mid-cable terminations without special preparation or handling of the cable or wires in order to interconnect fieldbus and power lines at any point. The hermaphroditic four-point contact mating structures reduces the number of different components required to interconnect and ensures a reliable interconnect. It can terminate with a common pair of pliers.
