PPTC211KFXC

Obsolete

Sullins Connector Solutions

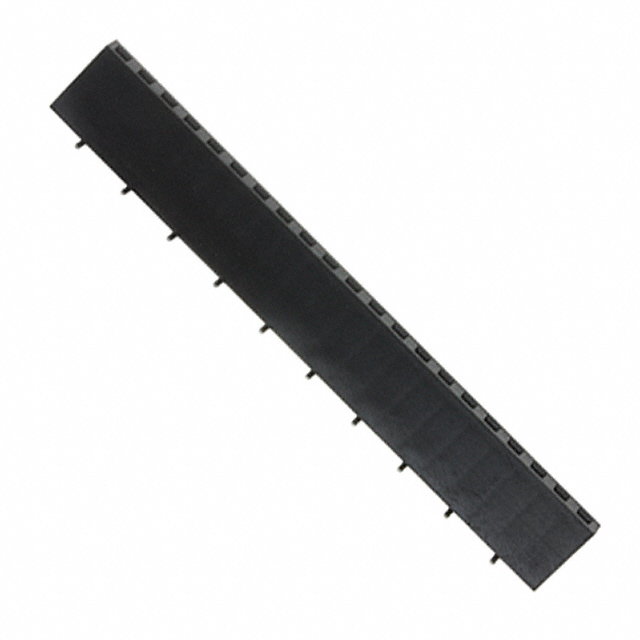

CONN HDR 21POS 0.1 TIN SMD

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 21POS 0.1 TIN SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC211KFXC

Connector Type	Header, Top or Bottom Entry
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.28 in
Insulation Height	7.1 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	21
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Material	Number of Positions Loaded	Insulation Color	Contact Material	Insulation Height	Insulation Height	Voltage Rating	Contact Finish - Post	Contact Type	Mounting Type	Current Rating (Amps)	Contact Shape	Material Flammability Rating	Termination	Fastening Type	Number of Rows	Number of Positions	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PPTC211KFXC	0.1 in	2.54 mm	-40 °C	105 ░C	Header Top or Bottom Entry	Polyester	All	Black	Phosphor Bronze	0.28 in	7.1 mm	250 VDC	Tin	Female Socket	Surface Mount	3 A	Square	UL94 V-0	Solder	Push-Pull	1	21
Sullins Connector Solutions PPTC211LGBN-RC	0.1 in	2.54 mm	-40 °C	105 ░C	Header	Polyester	All	Black	Phosphor Bronze	0.1 in	2.54 mm	250 VDC	Tin	Female Socket	Through Hole Right Angle	3 A	Square	UL94 V-0	Solder	Push-Pull	1	21	3.15 mm	0.124 "
Sullins Connector Solutions PPTC211LGBN	0.1 in	2.54 mm	-40 °C	105 ░C	Header	Polyester	All	Black	Phosphor Bronze	0.1 in	2.54 mm	250 VDC	Tin	Female Socket	Through Hole Right Angle	3 A	Square	UL94 V-0	Solder	Push-Pull	1	21	3.15 mm	0.124 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

21 Position Header, Top or Bottom Entry Connector 0.100" (2.54mm) Surface Mount Tin
