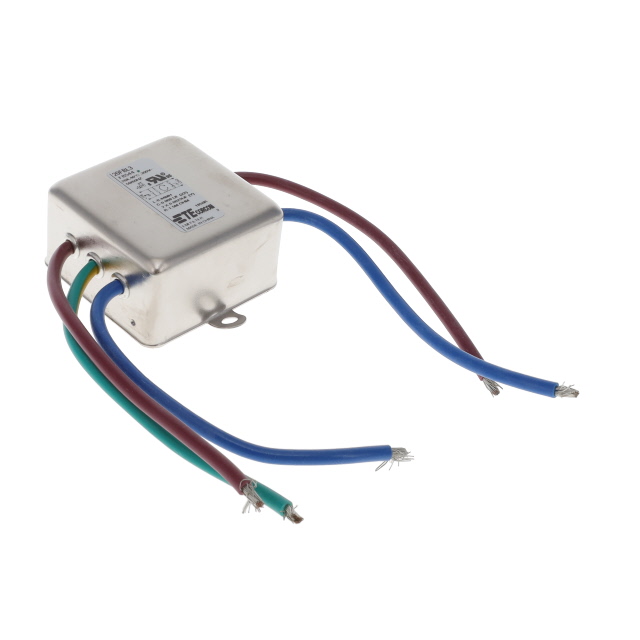

20FBL3

Active

TE Connectivity Corcom Filters

LINE FILT 277VDC/VAC 20A CHAS

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILT 277VDC/VAC 20A CHAS

Technical Specifications

Parameters and characteristics for this part

Specification	20FBL3

Applications	Lighting
Configuration	Single Stage
Current	20 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Wire Leads
Voltage - Rated AC	277 V
Voltage - Rated DC	277 V

LINE FILT 277VDC/VAC 20A CHAS

Part	Configuration	Voltage - Rated AC	Applications	Voltage - Rated DC	Frequency - Operating [Max]	Frequency - Operating [Min]	Filter Type	Termination Style	Mounting Type	Current	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
TE Connectivity Corcom Filters 20FBL3	Single Stage	277 V	Lighting	277 V	60 Hz	50 Hz	Single Phase	Wire Leads	Chassis Mount	20 A	-10 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 20 A 277V 277V 50/60Hz Single Stage Wire Leads
