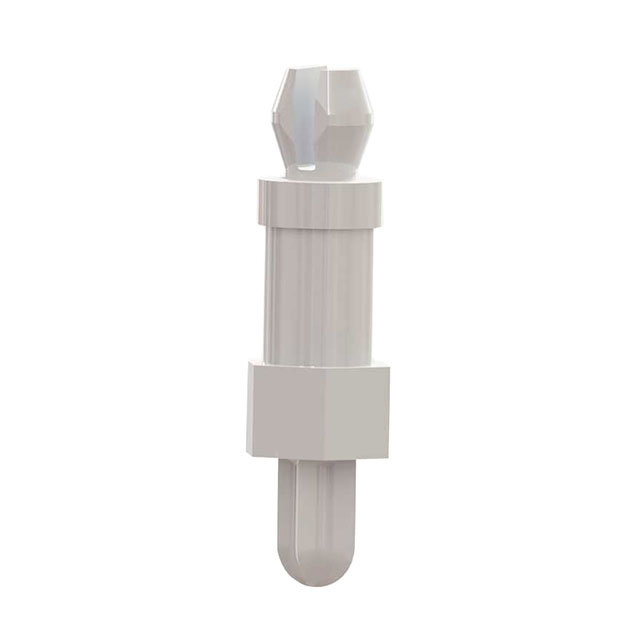

MSPMST-8-01
ActiveEssentra Access Solutions
BRD SPT SNAP FIT THR STUD 1/2"
Deep-Dive with AI
Search across all available documentation for this part.
MSPMST-8-01
ActiveEssentra Access Solutions
BRD SPT SNAP FIT THR STUD 1/2"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSPMST-8-01 |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Between Board Height | 0.5 in |
| Features | M3 Thread |
| Holding Type | Snap Fit |
| Length - Overall [x] | 0.831 in |
| Length - Overall [x] | 21.1 mm |
| Material | Nylon |
| Mounting Panel Thickness | 4.6 mm |
| Mounting Panel Thickness | 0.18 in |
| Mounting Type | Threaded Stud |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 3.18 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.33 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.18 | |||
Description
General part information
MSPMST Series
Board Support Snap Fit / Threaded Stud Nylon 0.500" (12.70mm) 1/2"
Documents
Technical documentation and resources
No documents available
