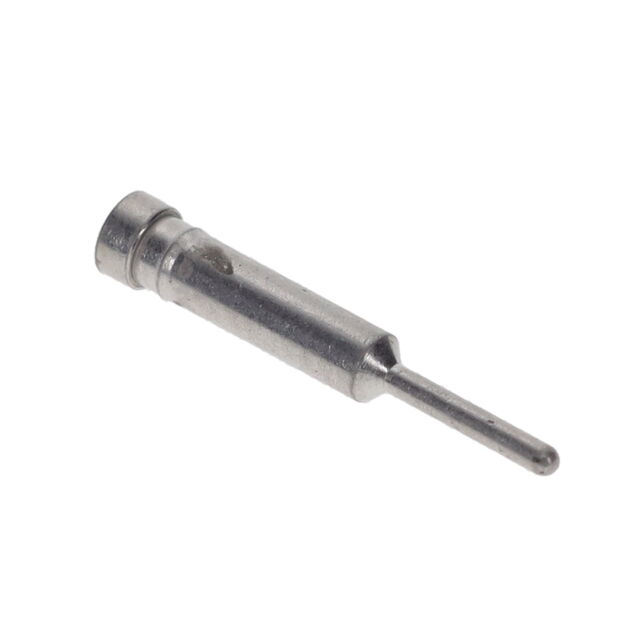

0399-1-15-80-47-80-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

DocumentsPin Receptacles (metric) ~

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0399-1-15-80-47-80-04-0

Accepts Pin Diameter [Max]	0.037 "
Accepts Pin Diameter [Max]	0.94 mm
Accepts Pin Diameter [Min]	0.64 mm
Accepts Pin Diameter [Min]	0.025 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Tin
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	0.44 in
Length - Overall [x]	11.18 mm
Mounting Hole Diameter [diameter]	1.57 mm
Mounting Hole Diameter [diameter]	0.062 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	0.23 in
Socket Depth	5.84 mm
Tail Diameter [diameter]	0.025 in
Tail Diameter [diameter]	0.64 mm
Tail Type	Standard Tail
Termination	Press-Fit

0399-1 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Socket Depth	Socket Depth	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 0399-1-15-15-47-27-04-0	0.76 Ám	30 Áin	Beryllium Copper	0.037 "	0.64 mm	0.94 mm	0.025 "	Standard Tail	0.23 in	5.84 mm	0.64 mm	0.025 in	Press-Fit	-55 °C	125 °C	Gold	0.051 in	1.3 mm	1.83 mm	0.072 in	0.025 in	0.64 mm	0.44 in	11.18 mm	1.57 mm	0.062 in
Mill-Max Manufacturing Corp. 0399-1-15-01-47-01-04-0	5.08 Ám	200 Áin	Beryllium Copper	0.037 "	0.64 mm	0.94 mm	0.025 "	Standard Tail	0.23 in	5.84 mm	0.64 mm	0.025 in	Press-Fit	-55 °C	125 °C	Tin-Lead	0.051 in	1.3 mm	1.83 mm	0.072 in	0.025 in	0.64 mm	0.44 in	11.18 mm	1.57 mm	0.062 in
Mill-Max Manufacturing Corp. 0399-1-15-80-47-80-04-0	5.08 Ám	200 Áin	Beryllium Copper	0.037 "	0.64 mm	0.94 mm	0.025 "	Standard Tail	0.23 in	5.84 mm	0.64 mm	0.025 in	Press-Fit	-55 °C	125 °C	Tin	0.051 in	1.3 mm	1.83 mm	0.072 in	0.025 in	0.64 mm	0.44 in	11.18 mm	1.57 mm	0.062 in
Mill-Max Manufacturing Corp. 0399-1-15-15-47-14-04-0	0.25 Ám	10 Áin	Beryllium Copper	0.037 "	0.64 mm	0.94 mm	0.025 "	Standard Tail	0.23 in	5.84 mm	0.64 mm	0.025 in	Press-Fit	-55 °C	125 °C	Gold	0.051 in	1.3 mm	1.83 mm	0.072 in	0.025 in	0.64 mm	0.44 in	11.18 mm	1.57 mm	0.062 in
Mill-Max Manufacturing Corp. 0399-1-15-01-47-27-04-0	0.76 Ám	30 Áin	Beryllium Copper	0.037 "	0.64 mm	0.94 mm	0.025 "	Standard Tail	0.23 in	5.84 mm	0.64 mm	0.025 in	Press-Fit	-55 °C	125 °C	Gold	0.051 in	1.3 mm	1.83 mm	0.072 in	0.025 in	0.64 mm	0.44 in	11.18 mm	1.57 mm	0.062 in
Mill-Max Manufacturing Corp. 0399-1-15-01-47-14-04-0	0.25 Ám	10 Áin	Beryllium Copper	0.037 "	0.64 mm	0.94 mm	0.025 "	Standard Tail	0.23 in	5.84 mm	0.64 mm	0.025 in	Press-Fit	-55 °C	125 °C	Gold	0.051 in	1.3 mm	1.83 mm	0.072 in	0.025 in	0.64 mm	0.44 in	11.18 mm	1.57 mm	0.062 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.23
		10	$ 1.04
		100	$ 0.93
		1000	$ 0.68
		5000	$ 0.59
		10000	$ 0.56

Description

General part information

0399-1 Series

Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Standard Tail Press-Fit

Documents

Technical documentation and resources

Pin Receptacles (metric) ~

Datasheet
