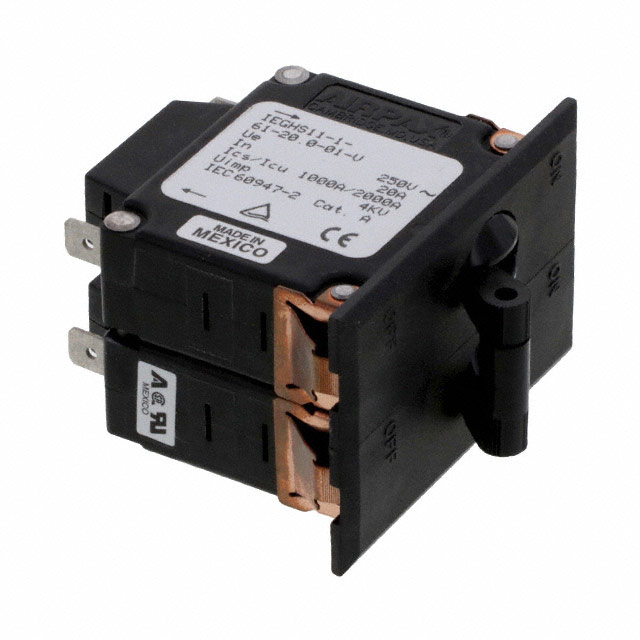

IEGHS11-1-61-20.0-01-V

Active

Sensata-Airpax

CIR BRKR MAG-HYDR LEVER 20A

Search across all available documentation for this part.

Active

Sensata-Airpax

CIR BRKR MAG-HYDR LEVER 20A

Technical Specifications

Parameters and characteristics for this part

Part	Breaker Type	Number of Poles	Approval Agency	Current Rating (Amps)	Actuator Type	Voltage Rating - AC	Illumination	Voltage Rating - DC
Sensata-Airpax IEGHS11-1-62-10.0-01-V	Magnetic (Hydraulic Delay)	2	CSA TUV UL1077	10 A	Lever
Sensata-Airpax IEGHS11-1-63-12.0-G-01-V	Magnetic (Hydraulic Delay)	2	CSA TUV UL1077	12 A	Lever
Sensata-Airpax IEGHS11-1-61-10.0-01-V	Magnetic (Hydraulic Delay)	2	CSA TUV UL1077	10 A	Lever
Sensata-Airpax IEGHS11-1REC4-62-10.0-G-01-V	Magnetic (Hydraulic Delay)	2	CSA TUV UL1077	10 A	Lever
Sensata-Airpax IEGHS11-1-63-15.0-01-V	Magnetic (Hydraulic Delay)	2	CSA TUV UL1077	15 A	Lever	250 V	None	80 V
Sensata-Airpax IEGHS11-1-61-20.0-01-V	Magnetic (Hydraulic Delay)	2	CSA TUV UL1077	20 A	Lever	250 V	None
Sensata-Airpax IEGHS11-1-63-25.0-01-V	Magnetic (Hydraulic Delay)	2	CSA TUV UL1077	25 A	Lever
Sensata-Airpax IEGHS11-1-63-20.0-01-V	Magnetic (Hydraulic Delay)	2	CSA TUV UL1077	20 A	Lever
Sensata-Airpax IEGHS11-1-62-4.50-S-01-V	Magnetic (Hydraulic Delay)	2	CSA TUV UL1077	4.5 A	Lever	250 V	None	80 V
Sensata-Airpax IEGHS11-1-62F-20.0-G-91-V	Magnetic (Hydraulic Delay)	2	CSA TUV UL1077	20 A	Lever

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 99.69

General part information

Circuit Breaker Magnetic (Hydraulic Delay) 20A 250 V AC DC Lever Panel Mount

Technical documentation and resources
