2015-1X03G00DAT-P

Active

Oupiin

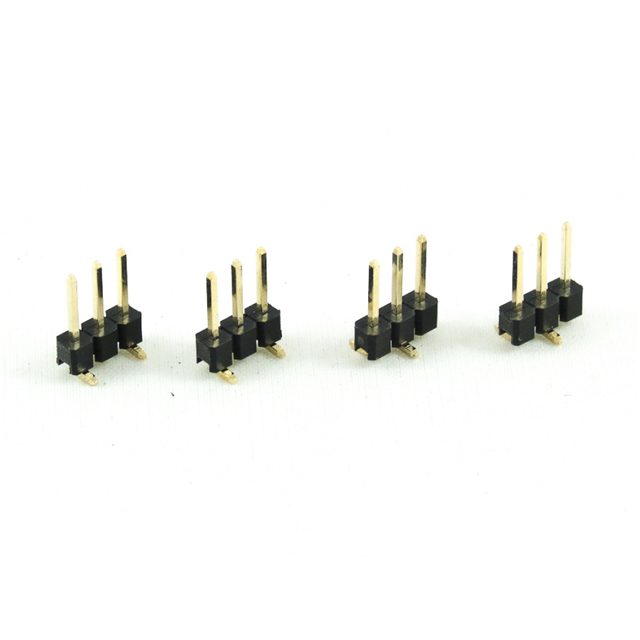

PIN HEADER, SINGLE ROW, 3 PIN, S

Deep-Dive with AI

Search across all available documentation for this part.

2015-1X03G00DAT-P

Active

Oupiin

PIN HEADER, SINGLE ROW, 3 PIN, S

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2015 Series

Connector Header Surface Mount 3 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2015-1X03G00DAT-P	2015 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold, Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating	0.244 "	0.244 - 0.276 "
Contact Length - Mating	6.2 mm	0.319 - 7 mm
Contact Length - Mating	-	8.1 mm
Contact Material	Brass	Brass, Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	2 - 3 A
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place	Pick and Place
Insulation Color	Black	Black
Insulation Height [z]	0.098 in	0.098 in
Insulation Height [z]	2.5 mm	2.5 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)	Nylon 6T, Polyamide (PA6T), Plastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	-	2 - 80
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	1	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating	-	1.5 - 2.54 mm
Row Spacing - Mating	-	0.059 - 0.1 in
Shrouding	Unshrouded	Unshrouded
Termination	Solder	Solder

2015 Series

PIN HEADER, DOUBLE ROW, 26 PIN,

Part	Current Rating (Amps)	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Shrouding	Termination	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Type	Contact Finish - Mating	Contact Material	Connector Type	Insulation Material	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Shape	Features	Mounting Type	Contact Length - Mating	Number of Positions
Oupiin 2015-2X13G00DT-P	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder	26	1.5 mm	0.059 in	Push-Pull	Male Pin	Gold	Brass	Header	Nylon 6T, Polyamide (PA6T)	All	0.1 in	2.54 mm	Black	Square	Pick and Place	Surface Mount
Oupiin 2015-2X05G00D-7.4-6.2-0.8T-P	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder	10	1.5 mm	0.059 in	Push-Pull	Male Pin	Gold	Brass	Header	Nylon 6T, Polyamide (PA6T)	All	0.1 in	2.54 mm	Black	Square	Pick and Place	Surface Mount
Oupiin 2015-2X05G00DB	2 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder	10	2.54 mm	0.1 in	Push-Pull	Male Pin	Gold	Copper Alloy	Header	Plastic	All	0.1 in	2.54 mm		Square		Surface Mount
Oupiin 2015-1X40G01DBB	2 A	UL94 V-0	0.098 in	2.5 mm	Gold	1	-40 °C	105 ░C		0.244 "	6.2 mm		Unshrouded	Solder	40			Push-Pull	Male Pin	Gold	Copper Alloy	Header	Plastic	All	0.1 in	2.54 mm		Square		Surface Mount
Oupiin 2015-1X06G01DAB	2 A	UL94 V-0	0.098 in	2.5 mm	Gold	1	-40 °C	105 ░C		0.244 "	6.2 mm		Unshrouded	Solder	6			Push-Pull	Male Pin	Gold	Copper Alloy	Header	Plastic	All	0.1 in	2.54 mm		Square		Surface Mount
Oupiin 2015-2X07G00DT-P	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder	14	1.5 mm	0.059 in	Push-Pull	Male Pin	Gold	Brass	Header	Nylon 6T, Polyamide (PA6T)	All	0.1 in	2.54 mm	Black	Square	Pick and Place	Surface Mount
Oupiin 2015-2X09G00D-7.4-8.1-0.8B	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash		0.319 in	Flash	Unshrouded	Solder	18	1.5 mm	0.059 in	Push-Pull	Male Pin	Gold	Brass	Header	Nylon 6T, Polyamide (PA6T)	All	0.1 in	2.54 mm	Black	Square		Surface Mount	8.1 mm
Oupiin 2015-2X07G01DU-P	3 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder	14	1.5 mm	0.059 in	Push-Pull	Male Pin	Gold	Brass	Header	Nylon 6T, Polyamide (PA6T)	All	0.1 in	2.54 mm	Black	Square	Pick and Place	Surface Mount
Oupiin 2015-2X08G00DB	2 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder		2.54 mm	0.1 in	Push-Pull	Male Pin	Gold	Copper Alloy	Header	Plastic	All	0.1 in	2.54 mm		Square		Surface Mount		16
Oupiin 2015-2X20G00DB	2 A	UL94 V-0	0.098 in	2.5 mm	Gold	2	-40 °C	105 ░C	Flash	0.244 "	6.2 mm	Flash	Unshrouded	Solder	40	2.54 mm	0.1 in	Push-Pull	Male Pin	Gold	Copper Alloy	Header	Plastic	All	0.1 in	2.54 mm		Square		Surface Mount
