SKY13498-21
ActiveSkyworks Solutions Inc.

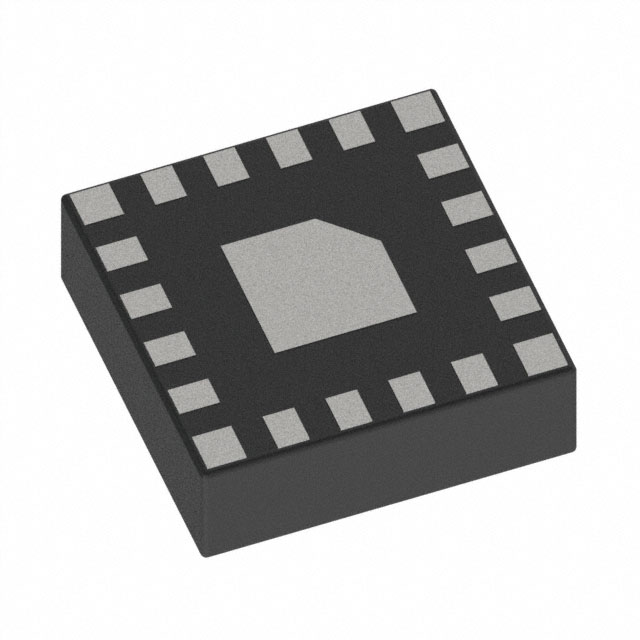

IC RF SWITCH SP10T 2.69GHZ 20MCM
SKY13498-21
ActiveSkyworks Solutions Inc.
IC RF SWITCH SP10T 2.69GHZ 20MCM
Description
General part information
SKY13498 Series
RF Switch IC General Purpose SP10T 50Ohm 20-MCM (2.5x2.5)
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY13498-21 |
|---|---|
| Circuit | SP10T |
| Frequency Range (Max) | 2.69 GHz |
| Frequency Range (Min) | 700 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.95 dB |
| Isolation | 19 dB |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 20-SMD Module |
| Package Length | 2.5 mm |
| Package Name | 20-MCM |
| Package Width | 2.5 mm |
| RF Type | General Purpose |
| Test Frequency | 2.7 GHz |
| Voltage - Supply (Maximum) | 6 V |
| Voltage - Supply (Minimum) | 2.5 V |
