M2011B2B1W03
ObsoleteNKK Switches

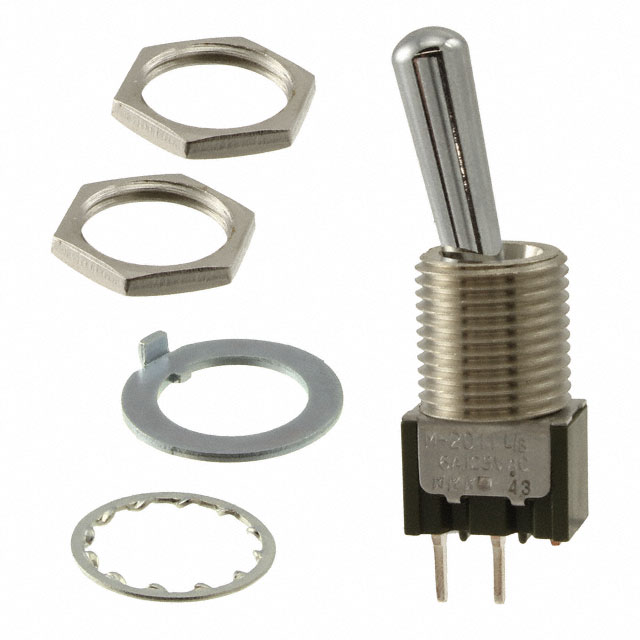

SWITCH TOGGLE SPST 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2011B2B1W03
ObsoleteNKK Switches
SWITCH TOGGLE SPST 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2011B2B1W03 |
|---|---|
| Actuator Length [x] | 17.5 mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Bushing Thread | M12 |
| Bushing Thread | 1 x 1 |
| Circuit | SPST |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 25000 Steps |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 12.5 mm |
| Switch Function | On-Off |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
M2011B2 Series
| Part | Panel Cutout Dimensions [diameter] | Electrical Life | Voltage Rating - DC | Illumination | Switch Function | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Length [x] | Circuit | Features | Current Rating (Amps) | Actuator Type | Bushing Thread | Bushing Thread | Voltage Rating - AC | Actuator Material | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 12.5 mm | 25000 Steps | 30 V | Non-Illuminated | On-Off | Quick Connect - 0.062" (1.5mm) | -30 ░C | 85 °C | 17.5 mm | SPST | Epoxy Sealed Terminals | 4 A 6 A | Standard Round | M12 | 1 x 1 | 125 V | Brass Chrome Plated | |
NKK Switches | 12.5 mm | 25000 Steps | 30 V | Non-Illuminated | On-Off | Solder Lug | -30 ░C | 85 °C | 17.5 mm | SPST | 4 A 6 A | Standard Round | M12 | 1 x 1 | 125 V | Brass Chrome Plated | ||
NKK Switches | 12.5 mm | 25000 Steps | 30 V | Non-Illuminated | On-Off | PC Pin | -30 ░C | 85 °C | 17.5 mm | SPST | Epoxy Sealed Terminals | 4 A 6 A | Standard Round | M12 | 1 x 1 | 125 V | Brass Chrome Plated | IP67 - Dust Tight Waterproof |
NKK Switches | 12.5 mm | 25000 Steps | 30 V | Non-Illuminated | On-Off | PC Pin | -30 ░C | 85 °C | 17.5 mm | SPST | Epoxy Sealed Terminals | 4 A 6 A | Standard Round | M12 | 1 x 1 | 125 V | Brass Chrome Plated | |
NKK Switches | 12.5 mm | 25000 Steps | 30 V | Non-Illuminated | On-Off | Solder Lug | -30 ░C | 85 °C | 17.5 mm | SPST | 4 A 6 A | Standard Round | M12 | 1 x 1 | 125 V | Brass Chrome Plated | ||
NKK Switches | 12.5 mm | 25000 Steps | 30 V | Non-Illuminated | On-Off | Solder Lug | -30 ░C | 85 °C | 17.5 mm | SPST | Epoxy Sealed Terminals | 4 A 6 A | Standard Round | M12 | 1 x 1 | 125 V | Brass Chrome Plated | IP67 - Dust Tight Waterproof |
NKK Switches | 12.5 mm | 25000 Steps | 30 V | Non-Illuminated | On-Off | Solder Lug | -30 ░C | 85 °C | 17.5 mm | SPST | 4 A 6 A | Standard Round | M12 | 1 x 1 | 125 V | Brass Chrome Plated | ||
NKK Switches | 12.5 mm | 50000 Cycles | 28 V | Non-Illuminated | On-Off | Solder Lug | -30 ░C | 85 °C | 17.5 mm | SPST | Epoxy Sealed Terminals | 0.4 VA | Standard Round | M12 | 1 x 1 | 28 V | Brass Chrome Plated | IP67 - Dust Tight Waterproof |
NKK Switches | 12.5 mm | 25000 Steps | 30 V | Non-Illuminated | On-Off | Solder Lug | -30 ░C | 85 °C | 17.5 mm | SPST | Epoxy Sealed Terminals | 4 A 6 A | Standard Round | M12 | 1 x 1 | 125 V | Brass Chrome Plated | IP67 - Dust Tight Waterproof |
NKK Switches | 12.5 mm | 25000 Steps | 30 V | Non-Illuminated | On-Off | Solder Lug | -30 ░C | 85 °C | 18.5 mm | SPST | Black Cap | 4 A 6 A | Standard Round with Cap | M12 | 1 x 1 | 125 V | Brass Chrome Plated | IP67 - Dust Tight Waterproof |
