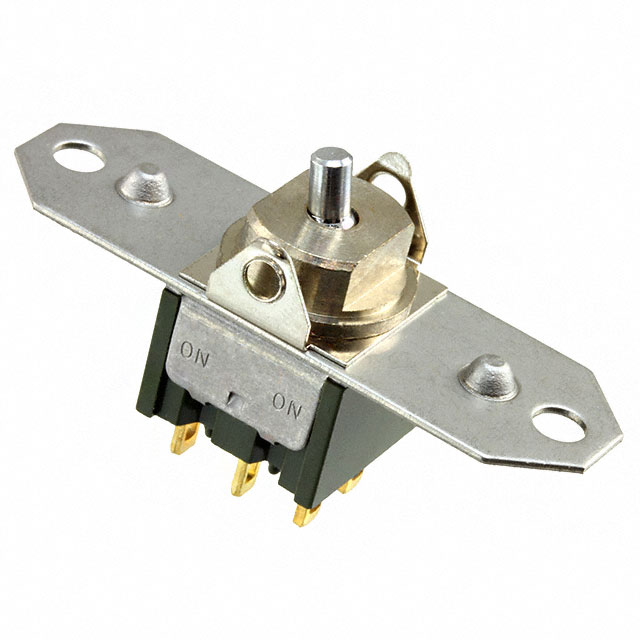

M2022TYG01

Obsolete

NKK Switches

SWITCH ROCKER DPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER DPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Part	Color - Actuator/Cap	Mounting Type	Voltage Rating - DC	Actuator Type	Approval Agency	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Circuit	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Features	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Marking
NKK Switches M2022TYW01-JB	White	Flange Panel Mount	30 V	Concave (Standard V)	CSA UL	4 A 6 A	On-On	125 V	DPDT	25000 Steps	-30 ░C	85 °C	Epoxy Sealed Terminals	Solder Lug	28.5 mm	16 mm	No Marking
NKK Switches M2022TYG01		Flange Panel Mount	28 V	Actuator Arm Cap Required	CSA UL	0.4 VA	On-On	28 V	DPDT	50000 Cycles	-30 ░C	85 °C	Epoxy Sealed Terminals	Solder Lug	28.5 mm	16 mm	Varies by Cap
NKK Switches M2022TYW01-JC	Red	Flange Panel Mount	30 V	Concave (Standard V)	CSA UL	4 A 6 A	On-On	125 V	DPDT	25000 Steps	-30 ░C	85 °C	Epoxy Sealed Terminals	Solder Lug	28.5 mm	16 mm	No Marking
NKK Switches M2022TYW01-JA	Black	Flange Panel Mount	30 V	Concave (Standard V)	CSA UL	4 A 6 A	On-On	125 V	DPDT	25000 Steps	-30 ░C	85 °C	Epoxy Sealed Terminals	Solder Lug	28.5 mm	16 mm	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.99

General part information

Rocker Switch DPDT 0.4VA (AC/DC) 28 V Panel Mount, Flange
