General part information
Position Terminal Block
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
3D models and CAD resources for this part
Technical documentation and resources
| Part | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Operating Temperature (Min) | Operating Temperature (Max) | Wire Gauge or Range - mm² (Maximum) | Wire Gauge or Range - mm² (Minimum) | Features | Voltage - UL | Current - UL | Color | Number of Positions | Pitch | Contact Mating Finish | Plug Wire Entry Angle | Number of Levels | Type | Termination Style | Positions Per Level | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | |||||||||||||||||||
 Molex | |||||||||||||||||||
 Molex | |||||||||||||||||||
Molex | |||||||||||||||||||
 Molex | |||||||||||||||||||

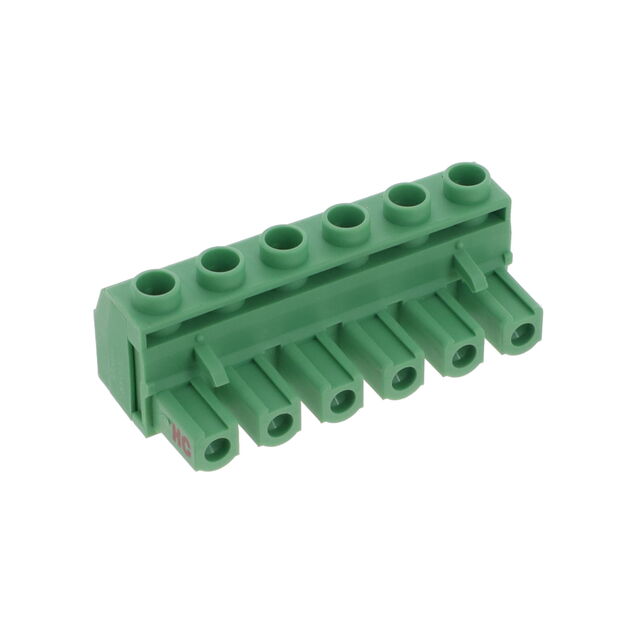

 Molex | 30 AWG | 12 AWG | -40 °C | 105 °C | 4 mm² | 0.05 mm² | Retention Latches (Non-Wire Side) | 600 V | 18.5 A | Green | 6 | 0.3 in | Tin | 180 ° | 1 | Female Sockets Plug | Screw - Rising Cage Clamp | 6 | Free Hanging (In-Line) |
