2111-3-00-80-00-00-07-0
ActiveMill-Max Manufacturing Corp.

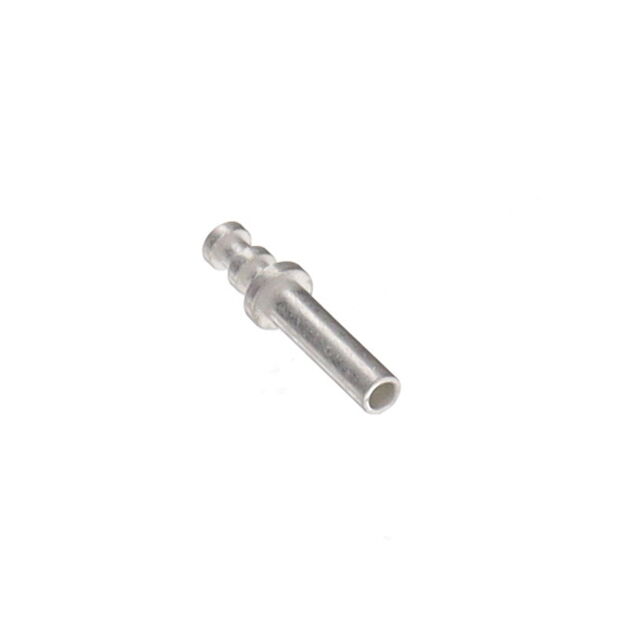

TERM TURRET SNG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2111-3-00-80-00-00-07-0 |
|---|---|
| Board Thickness | 0.094 in |
| Board Thickness | 2.39 mm |
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 0.81 mm |
| Diameter - Turret Head [diameter] | 0.032 in |
| Flange Diameter [diameter] | 1.19 mm |
| Flange Diameter [diameter] | 0.047 in |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 1.78 mm |
| Length - Above Board [x] | 0.07 in |
| Length - Below Flange [x] | 2.92 mm |
| Length - Below Flange [x] | 0.115 in |
| Length - Overall [x] | 0.185 " |
| Length - Overall [x] | 4.7 mm |
| Mounting Hole Diameter [diameter] | 0.033 in |
| Mounting Hole Diameter [diameter] | 0.84 mm |
| Mounting Type | Through Hole |
| Number of Turrets | Double |
| Staking Side ID | 0.51 mm |
| Staking Side ID | 0.02 in |
| Staking Side OD [diameter] | 0.76 mm |
| Staking Side OD [diameter] | 0.03 in |
| Terminal Type | Single End |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.73 | |
| 10 | $ 0.62 | |||
| 100 | $ 0.56 | |||
| 1000 | $ 0.40 | |||
| 5000 | $ 0.35 | |||
| 10000 | $ 0.34 | |||
Description
General part information
2111-3 Series
Terminal Turret Connector Single End 0.070" (1.78mm) Tin
