ACPK-12-01-G-T-P-1

Active

Samtec Inc.

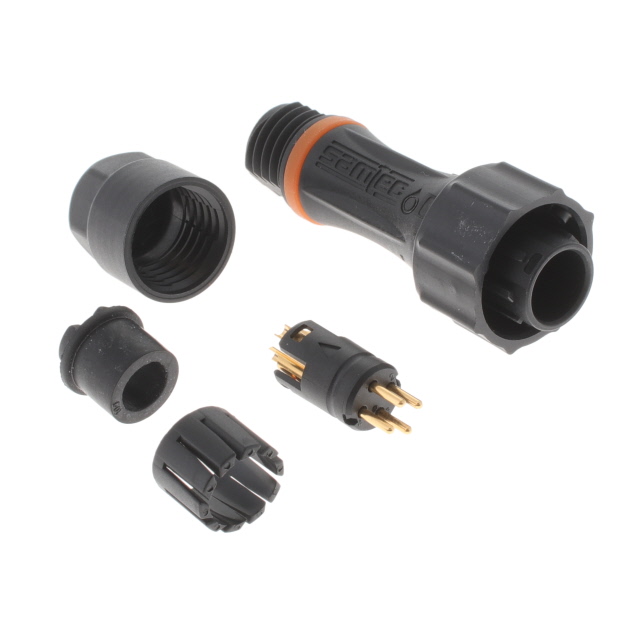

STANDARD CIRCULAR CONNECTOR ACCLIMATE IP68 SEALED CIRCULAR PLUG CABLE ASSEMBLY, 12 MM SHELL, FIELD TERMINATION KIT

Search across all available documentation for this part.

Active

Samtec Inc.

STANDARD CIRCULAR CONNECTOR ACCLIMATE IP68 SEALED CIRCULAR PLUG CABLE ASSEMBLY, 12 MM SHELL, FIELD TERMINATION KIT

Technical Specifications

Parameters and characteristics for this part

Specification	ACPK-12-01-G-T-P-1

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.205 in
Cable Opening [custom]	5.2 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Current Rating (Amps)	3.8 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-10 °C
Orientation	1
Primary Material	Plastic
Shell Size - Insert	12
Shielding	Unshielded

Standard Circular Connector AccliMate IP68 Sealed Circular Plug Cable Assembly, 12 mm Shell, Field Termination Kit

Part	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Insert Material	Contact Finish - Mating	Shell Size - Insert	Backshell Material, Plating	Orientation	Contact Material	Shielding	Mounting Type	Ingress Protection	Primary Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Color	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Fastening Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Samtec Inc. ACPK-12-01-G-T-P-1	3.8 A	10 çin	0.25 çm	4	Polybutylene Terephthalate (PBT)	Gold	12	Nylon Polyamide (PA)	1	Brass	Unshielded	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Plastic	Backshell Coupling Nut	80 C	-10 °C	Black	0.205 in	5.2 mm	Male Pins Plug	Bayonet Lock
Samtec Inc. ACPK-12-01-G-S-P-1	3.8 A	10 çin	0.25 çm	4	Polybutylene Terephthalate (PBT)	Gold	12	Nylon Polyamide (PA)	1	Brass	Unshielded	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Plastic	Backshell Coupling Nut	80 C	-10 °C	Black	0.205 in	5.2 mm	Female Sockets Plug	Bayonet Lock
Samtec Inc. ACPK-12-05-G-T-P-1	1.2 A 5 A	10 çin	0.25 çm		Polybutylene Terephthalate (PBT)	Gold	12	Nylon Polyamide (PA)	1	Brass	Unshielded	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Plastic	Backshell Coupling Nut	80 C	-10 °C	Black	0.205 in	5.2 mm	Male Pins Plug	Bayonet Lock	4	6	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Standard Circular Connector AccliMate IP68 Sealed Circular Plug Cable Assembly, 12 mm Shell, Field Termination Kit
