R161282000

Active

Radiall USA, Inc.

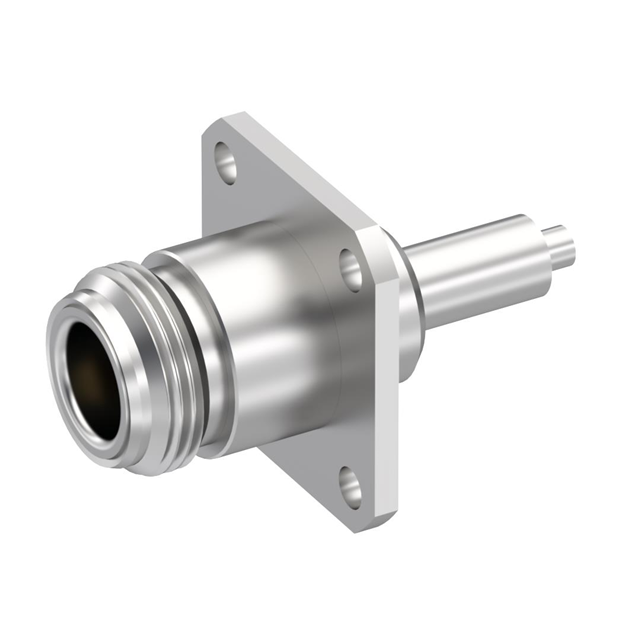

N / STRAIGHT SQUARE FLANGE JACK

Deep-Dive with AI

Search across all available documentation for this part.

R161282000

Active

Radiall USA, Inc.

N / STRAIGHT SQUARE FLANGE JACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R161282000

Body Finish	White Bronze
Body Material	Brass
Cable Group	141
Cable Group	RG-58
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

R16128 Series

Part	Center Contact Plating	Contact Termination	Dielectric Material	Connector Type	Body Finish	Connector Style	Mating Cycles	Voltage Rating	Cable Group [custom]	Cable Group [custom]	Mounting Feature	Insertion Loss	Housing Color	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Shield Termination	Body Material	Ingress Protection	Center Contact Material	Number of Ports	Cable Group	Cable Group
Radiall USA, Inc. R161286000	Gold	Crimp	Polytetrafluoroethylene (PTFE)	Female Socket Jack	White Bronze	N Type	500	1400 V	213	RG-165	Flange	0.15 dB	Silver	11 GHz	155 °C	-55 °C	50 Ohms	Crimp	Brass	IP67 - Dust Tight Waterproof	Beryllium Copper	1
Radiall USA, Inc. R161282000	Gold	Crimp	Polytetrafluoroethylene (PTFE)	Female Socket Jack	White Bronze	N Type	500	500 V			Flange	0.15 dB	Silver	11 GHz	155 °C	-55 °C	50 Ohms	Crimp	Brass	IP67 - Dust Tight Waterproof	Beryllium Copper	1	141	RG-58
Radiall USA, Inc. R161283000	Gold	Crimp	Polytetrafluoroethylene (PTFE)	Female Socket Jack	White Bronze	N Type	500	850 V			Flange	0.15 dB	Silver	11 GHz	155 °C	-55 °C	50 Ohms	Crimp	Brass	IP67 - Dust Tight Waterproof	Beryllium Copper	1		223 400 RG-142
Radiall USA, Inc. R161281300W	Gold	Crimp	Polytetrafluoroethylene (PTFE)	Female Socket Jack	White Bronze	N Type	500	250 VDC			Flange	0.15 dB	Silver	11 GHz	155 °C	-55 °C	50 Ohms	Crimp	Brass	IP65 - Dust Tight Water Resistant	Beryllium Copper	1		316 316 Double Braid RG-188
Radiall USA, Inc. R161283000W	Gold	Crimp	Polytetrafluoroethylene (PTFE)	Female Socket Jack	White Bronze	N Type	500	850 V			Flange	0.15 dB	Silver	11 GHz	155 °C	-55 °C	50 Ohms	Crimp	Brass	IP67 - Dust Tight Waterproof	Beryllium Copper	1		223 400 RG-142

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 25.69

Description

General part information

R16128 Series

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
