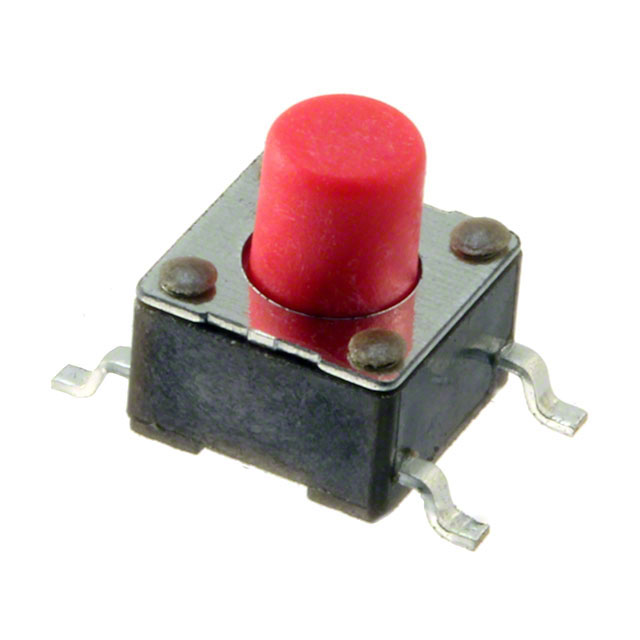

FSM6JSMAASTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Search across all available documentation for this part.
FSM6JSMAASTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FSM6JSMAASTR |
|---|---|
| Actuator Height off PCB, Vertical [z] | 7 mm |
| Actuator Material | Nylon, Polyamide (PA) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 260 gf |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 6 mm |
| Outline [y] | 6 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.59 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.47 | |||
| Digi-Reel® | 1 | $ 0.64 | ||
| 10 | $ 0.61 | |||
| 25 | $ 0.59 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.47 | |||
| Tape & Reel (TR) | 750 | $ 0.43 | ||
| 1500 | $ 0.39 | |||
| 3750 | $ 0.37 | |||
| 5250 | $ 0.34 | |||
| 18750 | $ 0.32 | |||
Description
General part information
FSM6 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
